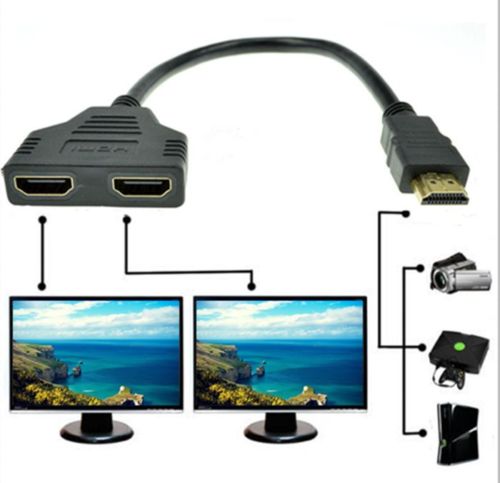

This HDMI splitter cable is ideal for connecting one HDMI compatible device (Xbox, Blueray, DVD players, PS3) to two visual output devises. It takes a signal from one device such as a Bluray player and will direct to one of two output devices that are plugged into it.

This product can act as a signal router, for example, you may have a TV in two separate rooms, you can have a TV on in one room and when you want to switch room and keep watching the TV, you just need to switch one TV off and switch the other TV on, and then the signal is routed to the TV in the other room.

Note: Only 1 output device should be active at any time unless both of the 2 display devices share the same size and model.

Features:

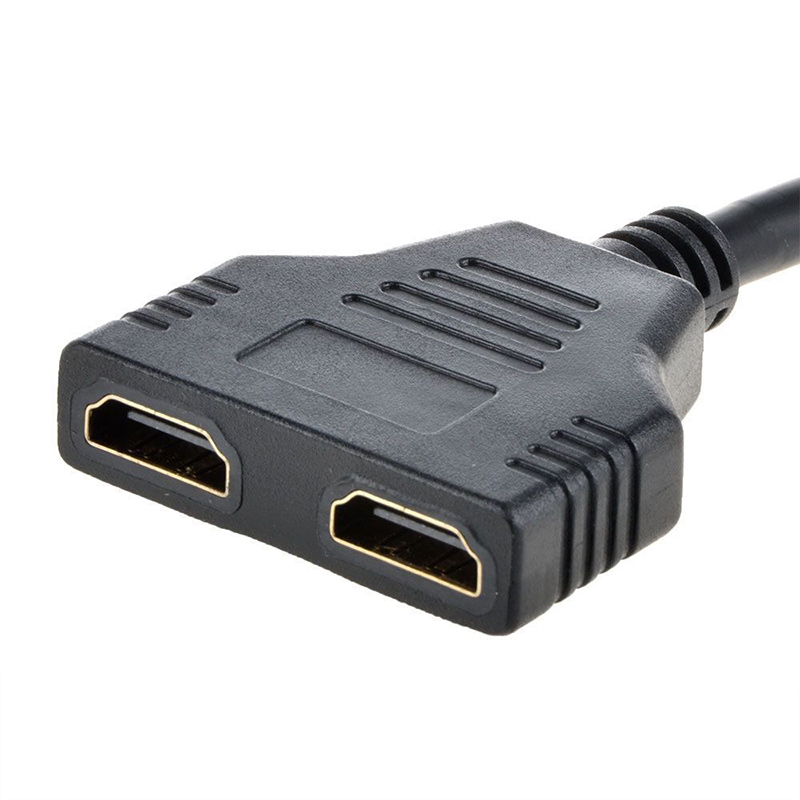

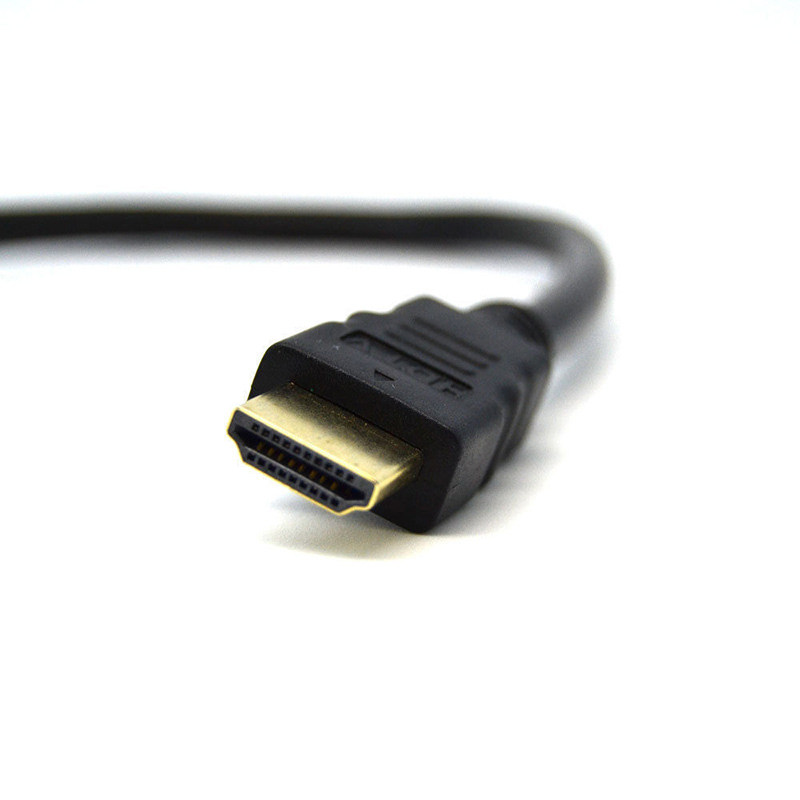

HDMI male to 2 female audio video splitter cable
Support 480i, 480p, 720p, 1080i, 1080p
Gold plated connectors for better signal transfer
Reset fonction enables to reset smoothly
Allow to connect HDMI devices that have Build-in HDMI ports, like HDTV, PlayStation 3, Upconvertor DVD Player, satellite boxes, LCD Monitor and projectors.
Operate it as following steps:
1. Connect your devices with this splitter cable
2. Turn the signal source on
3. Turn the first display on first and wait till it works properly
4. Then turn the second display on and enjoy it
Do not support HDCP
Do not support MACBOOK

Specifications:

HDMI Version: 1.4
Optional power source: 5V DC (USB power cable Included)
HD resolutions supported: 480i, 576i, 1080i, 480p, 576p, 720p, & 1080p (50/60Hz)
Maximum bandwidth: 340MHz/3.4Gbps per channel (10.2Gbps all channel)
Supports 12-bit per channel (36-bit all channel) deep color
Buit-in input cable: 0.2M
Color: Black

Package Includes:
