Description

Descriptions:

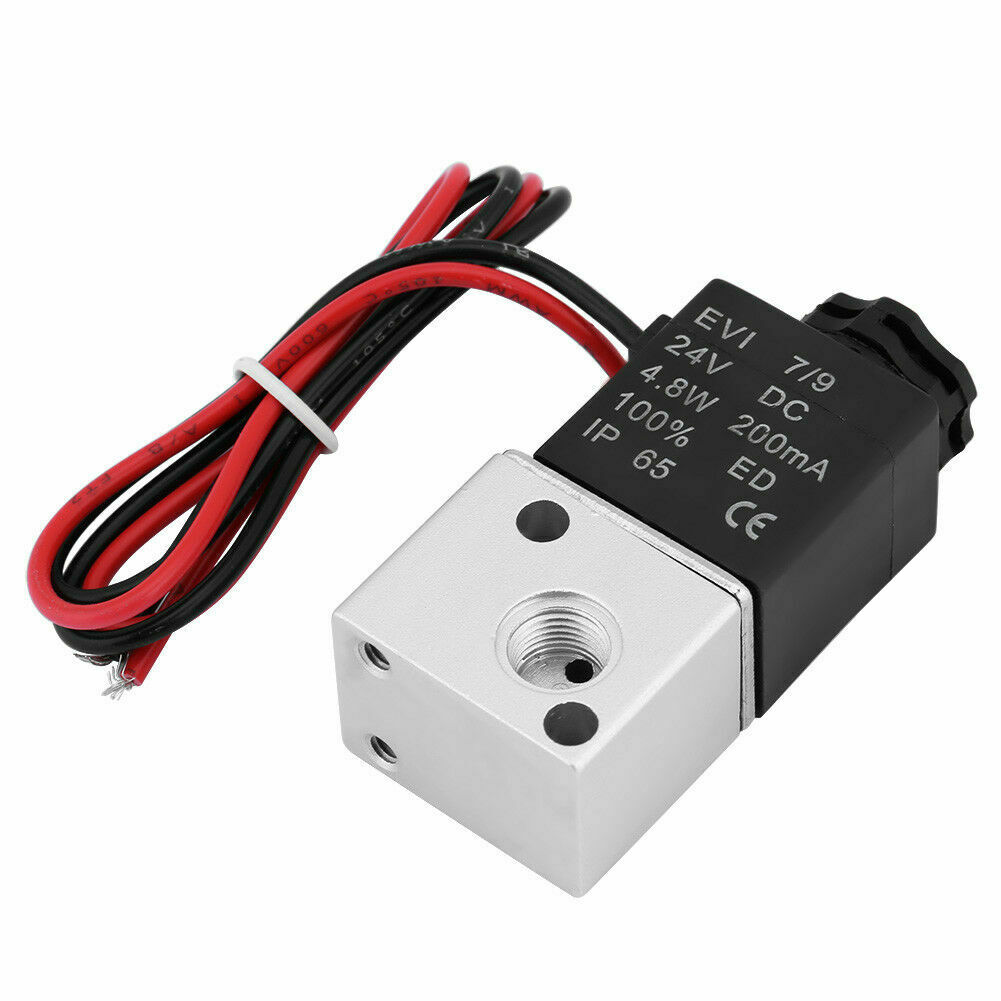

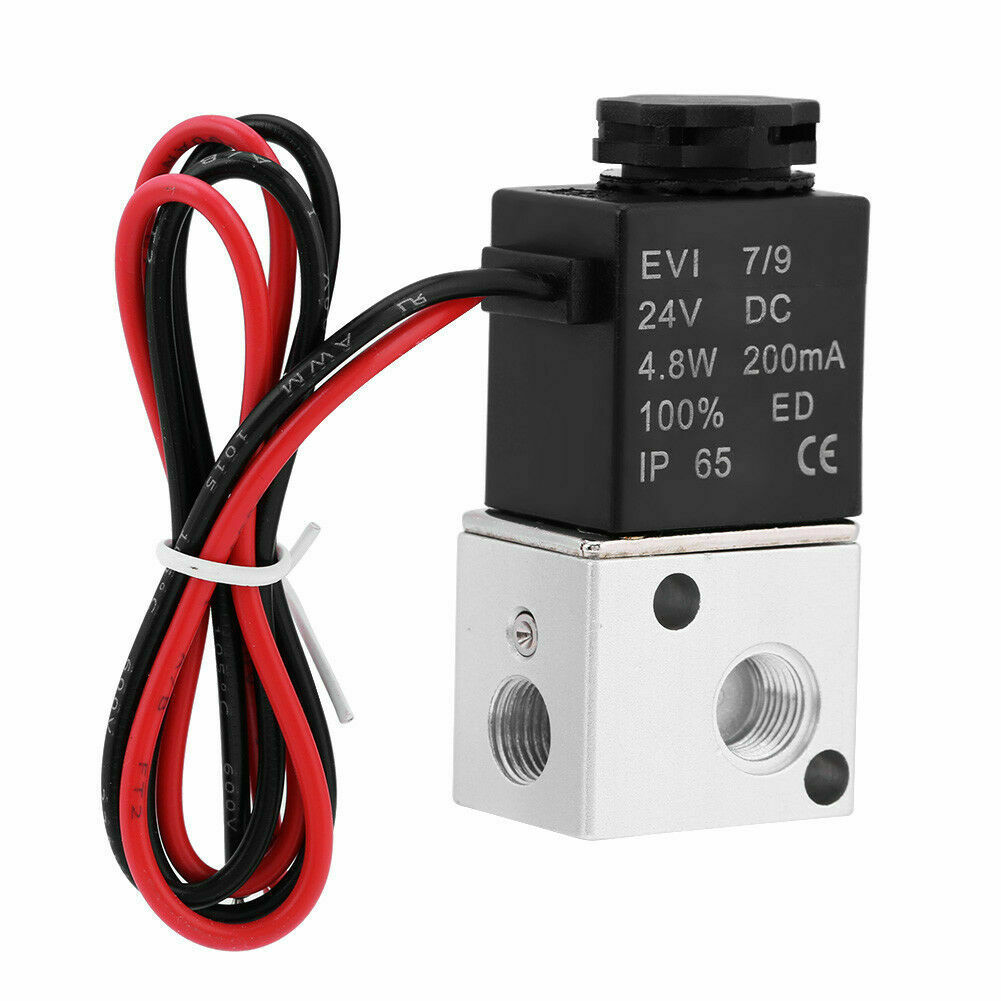

This solenoid air valve is 3 way 2 position, direct acting normally closed type, made of high quality brass material, sturdy body have a long lifespan, perfect for electrically driven pneumatic power control.
Features:
This solenoid air valve is made of high quality brass material, and durable in use.
This is direct acting type normally closed solenoid air valve, which is sensitive to change direction.
Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control.
The inner valve core and spring are made of stainless steel and will not rust, no need additional lubricate.
With solenoid operated for control appropriate flow and direction, provide great performance.
This solenoid air valve is a great replacement for the broken or old one.
Specifications:
Material: brass
Working medium: air
Acting mode: direct acting
Type: normally closed type
Voltage: DC24V
Receiver diameter: 1/8"BSP
Use pressure: 0-0.08MPa
Maximum pressure resistance: 1.0Mpa
Operating temperature range: 10 ~ 60 ℃
Use voltage range: ±10%
Protection level: IP65
Electrical connection: outlet type or terminal type
Maximum action frequency: 10 times/s
Minimum excitation time: 0.005 / S
Size: 6.6 x 3 x 2.2cm/2.60 x 1.18 x 0.87inch
Weight:136g,135g

DC 24V 3 Way 2 Position 1/8

$15.50
(including GST)
+ shipping click here
