CE/SAA/ADR/E-mark/FSC/COC APPROVED

Features:

• Material: High quality ABS. CE certified quality, environmental anti-retardant materials ,ABS and copper for USB ,power socket and voltmeter,including the switch panel ,wires and Stainless Steel Screw.

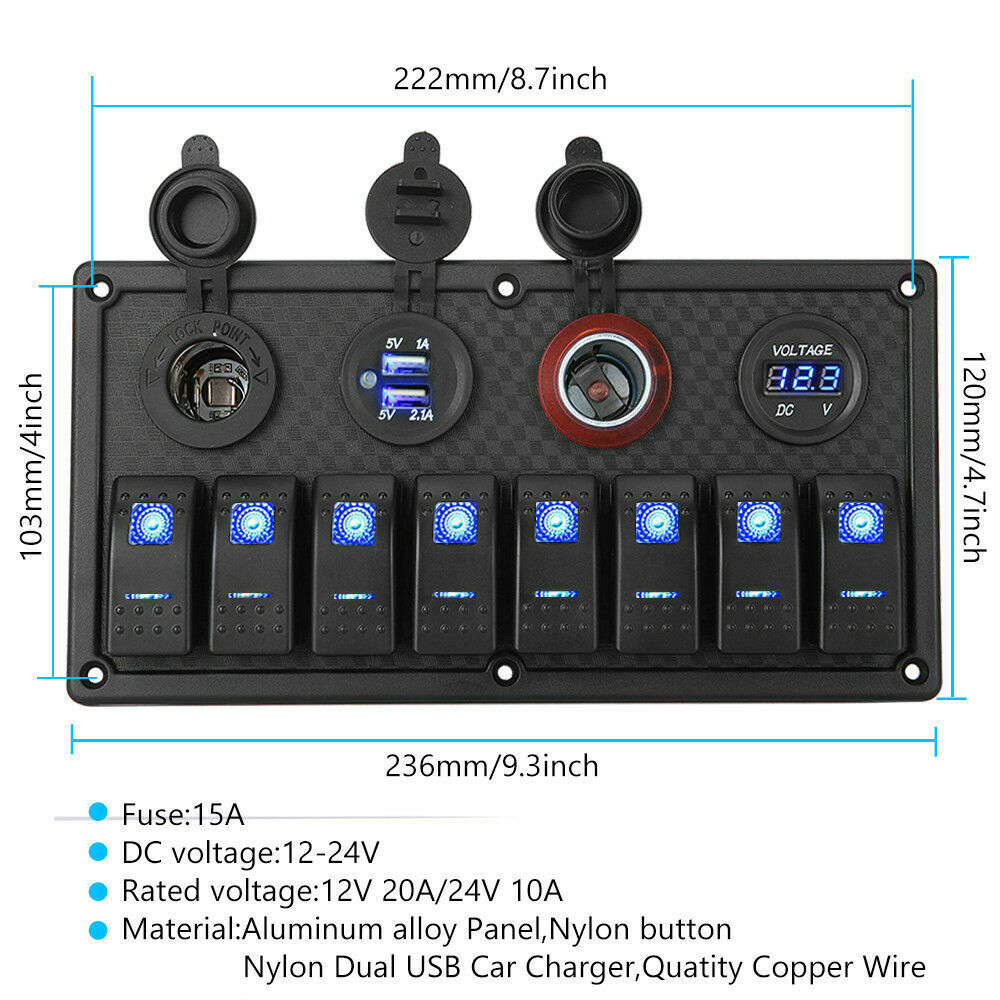

• panel size:panel size:230*120*80 mm(9.06"x4.72"x3.15")

• Short circuit / overheat protection for on-off rocker switch ,USB(2.1A x1,1A x1)and DC voltmeter

• With rubber seal-cap to keep it water-tight,best for marine

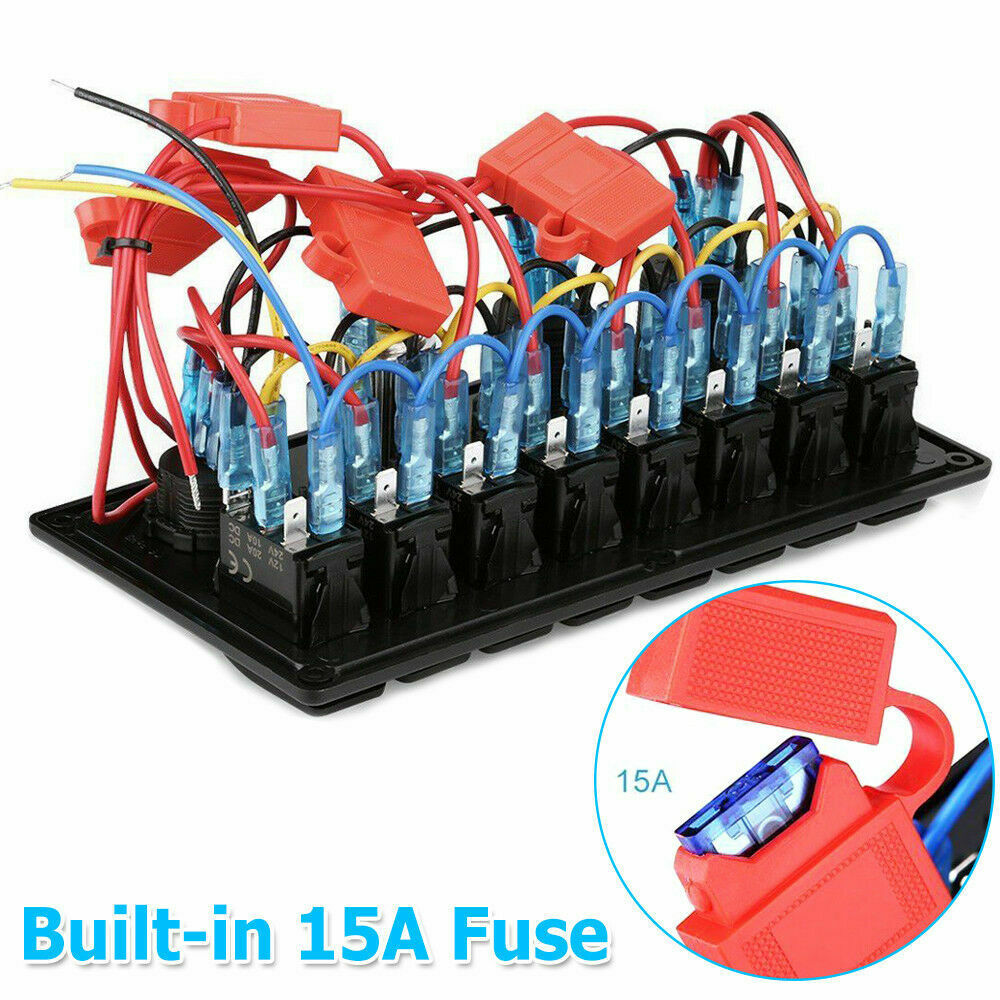

• Overload protection by Circuit breaker, splashproof,anti-corrosion.

• Easy to install,can be installed horizontally

• Suitable for both 12V and 24V systems Panel is pre-wired, Includes 6x Stainless Steel Screw

• Easy to install and durable.With our strict quality control system, we test each item and 100% ensure in good condition before we ship.



Description:

100% brand new!!!

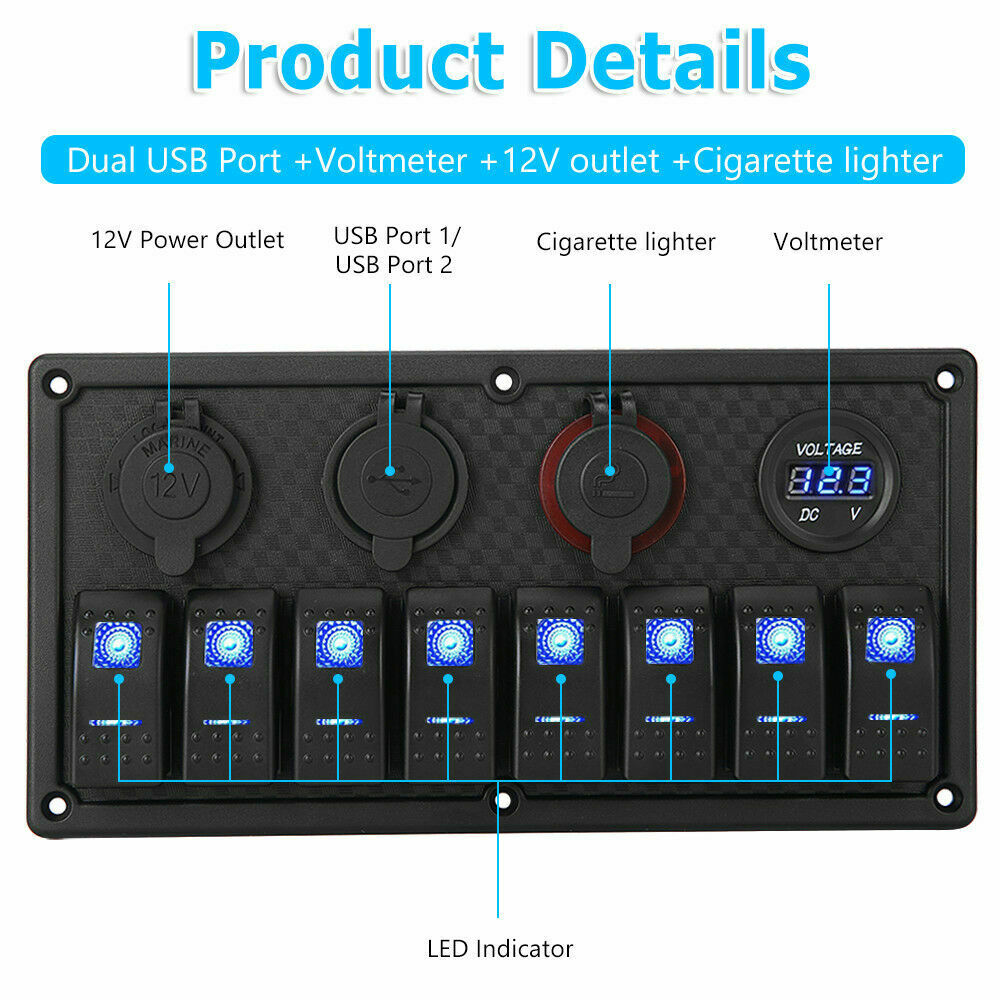

Rocker Switch:8(LED LIGHT BAR, SPOT LIGHTS, SIDE LIGHTS, ROOF LIGHTS, ZOMBIE LIGHTS, DRIVING LIGHTS etc)

Loop Circuit: ON-OFF

Switch System: Water-resistant enclosed Rocker switch

Rating: AC 125V 16A,250V 10A;DC 12V 20A,24V 10A

Input voltage: DC12V/24V

Maximum power: 240W

Operating Temperature: -25degree to 80degree

Electrical Life: 10000 make and break cycles at full load

IP Rating: IP67

Dual USB Charger Socket:

Input: DC 12-24V

Output: DC 5V 2.1A, 5V 1A

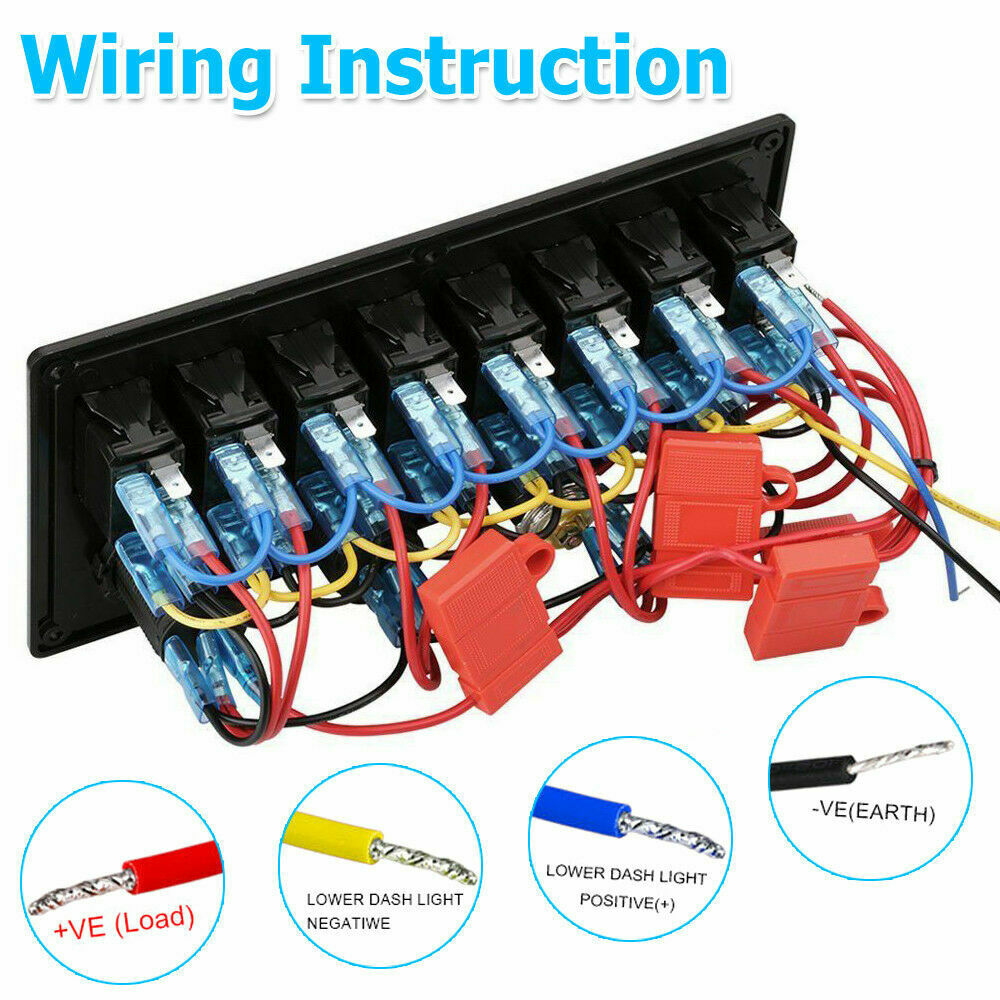

Wiring connection：

Installation:pre-wired

Can be horizontal mounted

The four red wires: connect the cathode of the storage battery.

The black wire: connect the anode of the storage battery.

The blue wire: connect the cathode of the storage battery.

The yellow wire: connect the anode of the storage battery.

Eight sheet coppers: the load generator positive connection.



Pacakge Includes:

1x Switch panel

1x Pop out lighter

1x Rubber seal pad

1x User manual

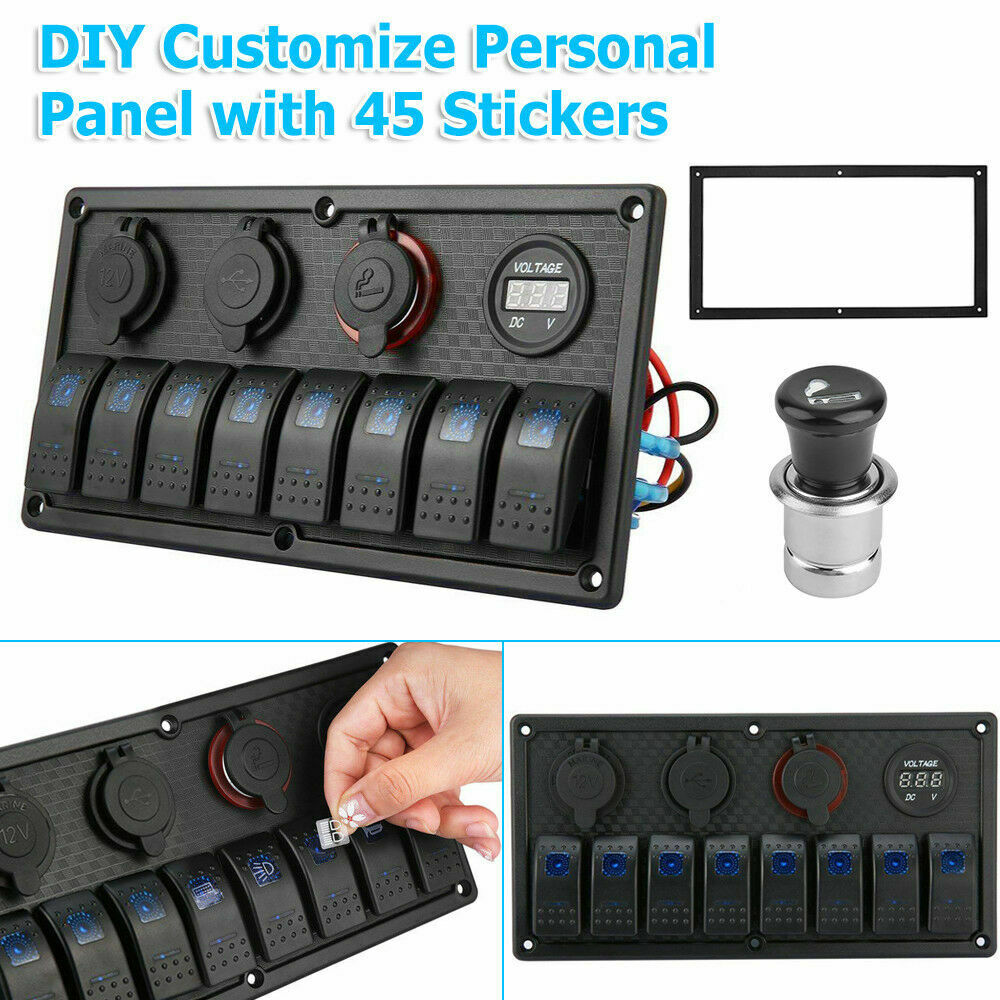

2x Sticker label

6x Stainless Steel Screw
