50PCS Solderstick Waterproof Solder Wire Connector Kit Original Top Quality NEW

Description:

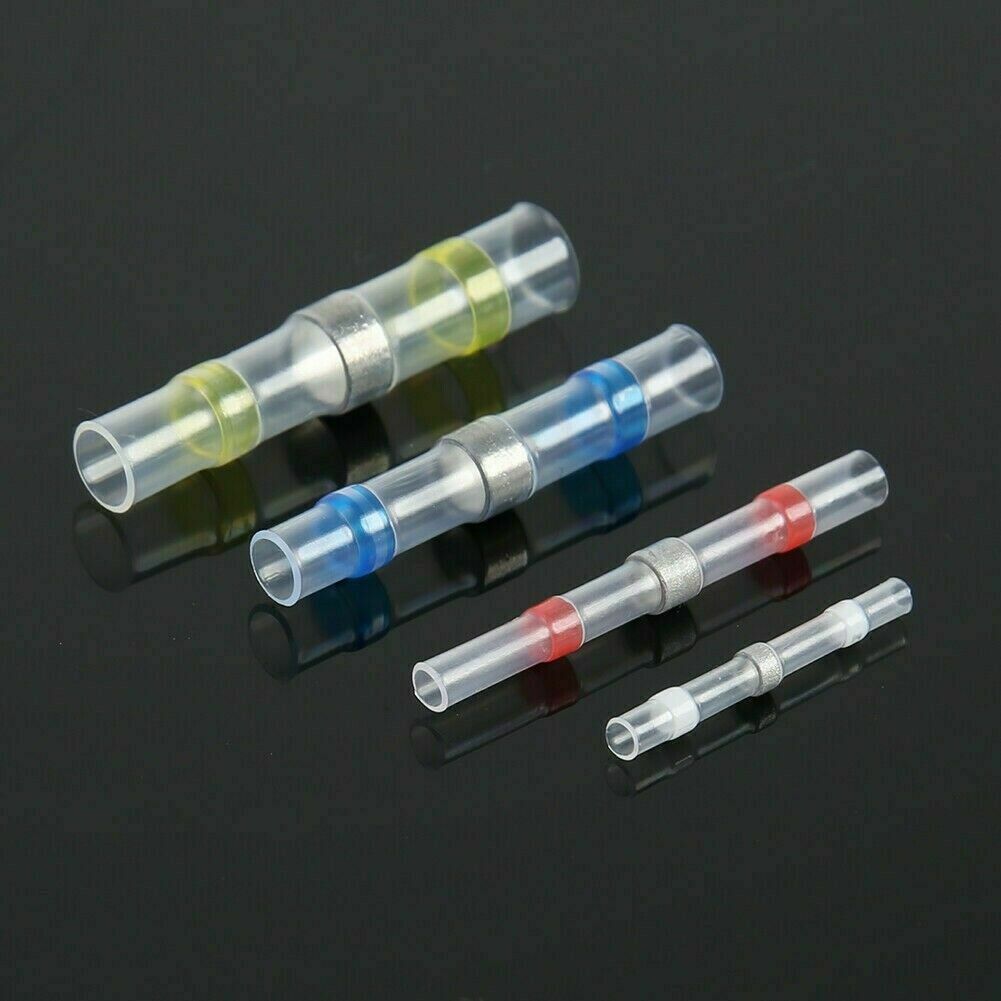

Pack of 50 pieces of heat-shrinkable intermediate tube, waterproof welding ring, sealed welding sleeve, wire and cable connector terminal

The shrinkage ratio is 2:1.

Using hot melt adhesive, it has waterproof function.

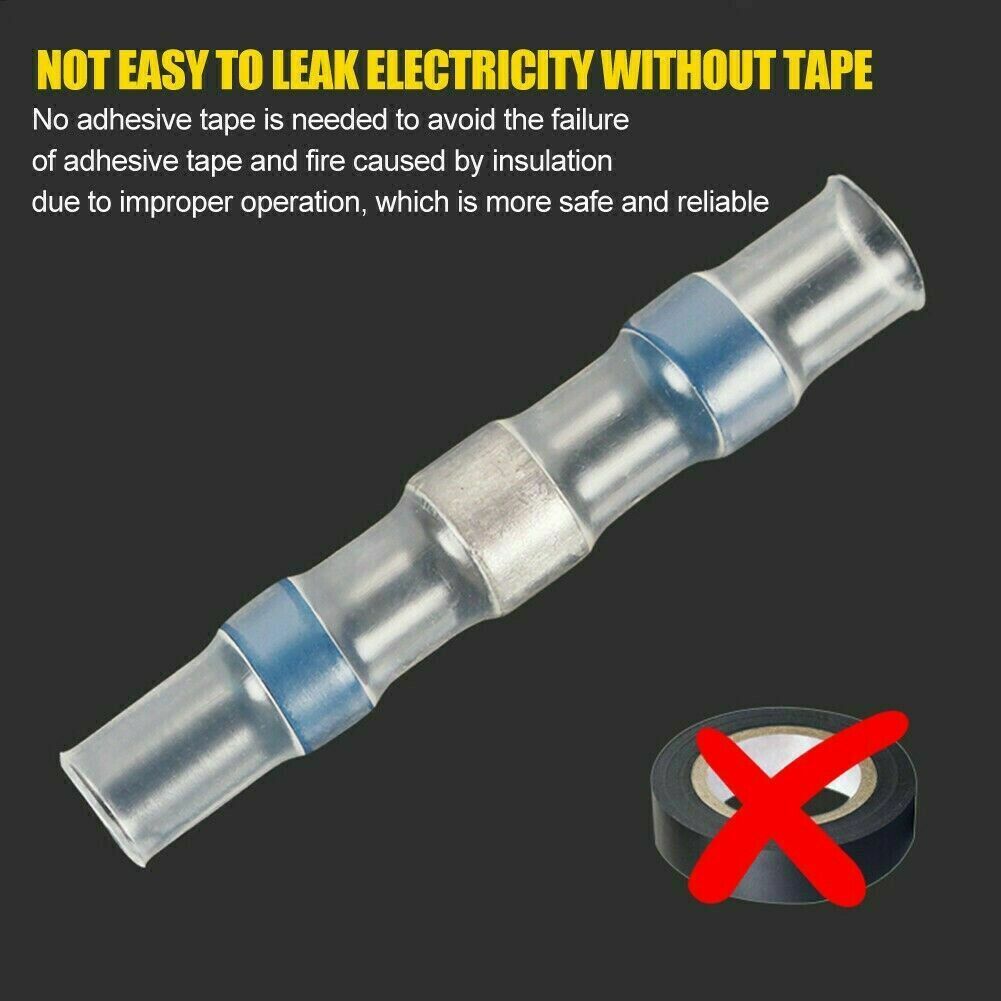

Sealed, waterproof and insulated.

Controlled welding process.

Applicable size for hot melt adhesive color code.

The design of the welding ring is easy to construct.

Specification:

Material: PE

Packing size: 120*66*27mm/4.72*2.59*1.06''

Working temperature:-55℃～105℃

Initial shrinkage temperature: 60℃

Melting start temperature: 111℃

Complete melting temperature of solder: 118℃

Application: Designed for wire connection, welding heat shrink protection and waterproof.

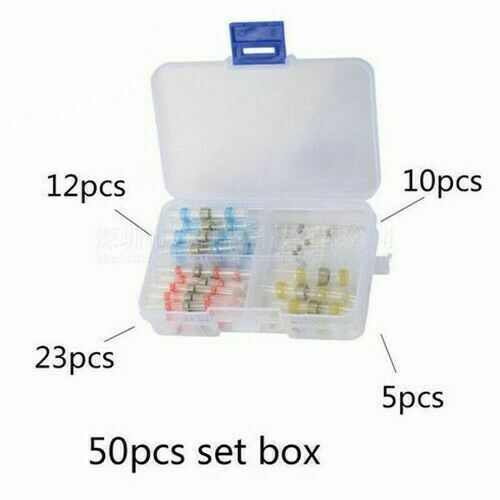

Red connector: tool cable/wire size 22-16 AWG 0.5-1.5mm2 23 PCS

Blue connector: tool cable/wire size 16-12 AWG 1.5-2.5mm2 12 PCS

Yellow connector: tool cable/wire size 12-10 AWG 4.0mm2 10 PCS

White connector: tool cable/wire size 26-24 AWG 0.25-0.34mm2 5 PCS

Package list:

1*50pcs heat shrinkable tube kit

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
