Specifications

Note: The below specifications represent this GPU as incorporated into NVIDIA's reference graphics card design. Clock specifications apply while gaming with medium to full GPU utilization. Graphics card specifications may vary by Add-in-card manufacturer. Please refer to the Add-in-card manufacturers' website for actual shipping specifications.

GPU Engine Specs

CUDA Cores

16

Graphics Clock (MHz)

589MHz

Processor Clock (MHz)

1402MHz

Graphics Performance

low-580

Memory Specs

Memory Clock

500MHz

Standard Memory Config

512MB

Memory Interface

GDDR2

Memory Interface Width

64-bit

Memory Bandwidth (GB/sec)

8.0

Feature Support

OpenGL

3.1

Bus Support

PCI-E 2.0

Supported Technologies

CUDA

Display Support

Multi Monitor

Yes

Maximum Digital Resolution

2560x1600

Maximum VGA Resolution

2048x1536

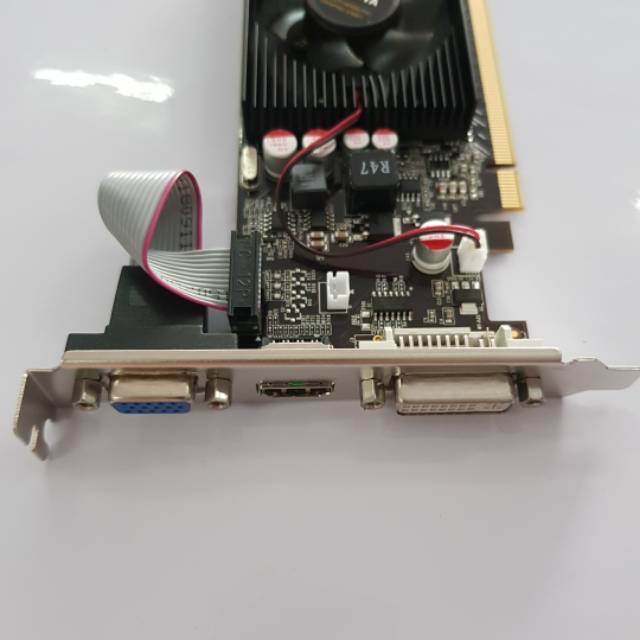

Standard Display Connectors

DVI

VGA

DisplayPort

HDMI

Yes

Standard Graphics Card Dimensions

Length

6.60 inches

Height

2.731 inches

Width

Single-slot

Thermal and Power Specs

Maximum GPU Temperature (in C)

105 C

Maximum Graphics Card Power (W)

30.5 W

Minimum System Power Requirement (W)

300 W

Legacy Specs

Audio Input for HDMI

Internal
