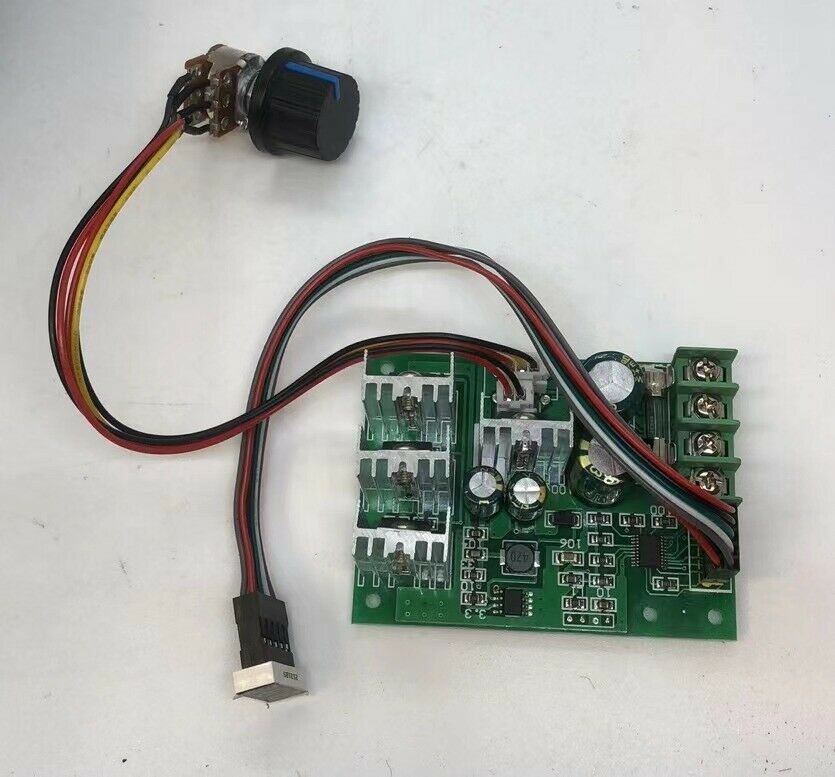

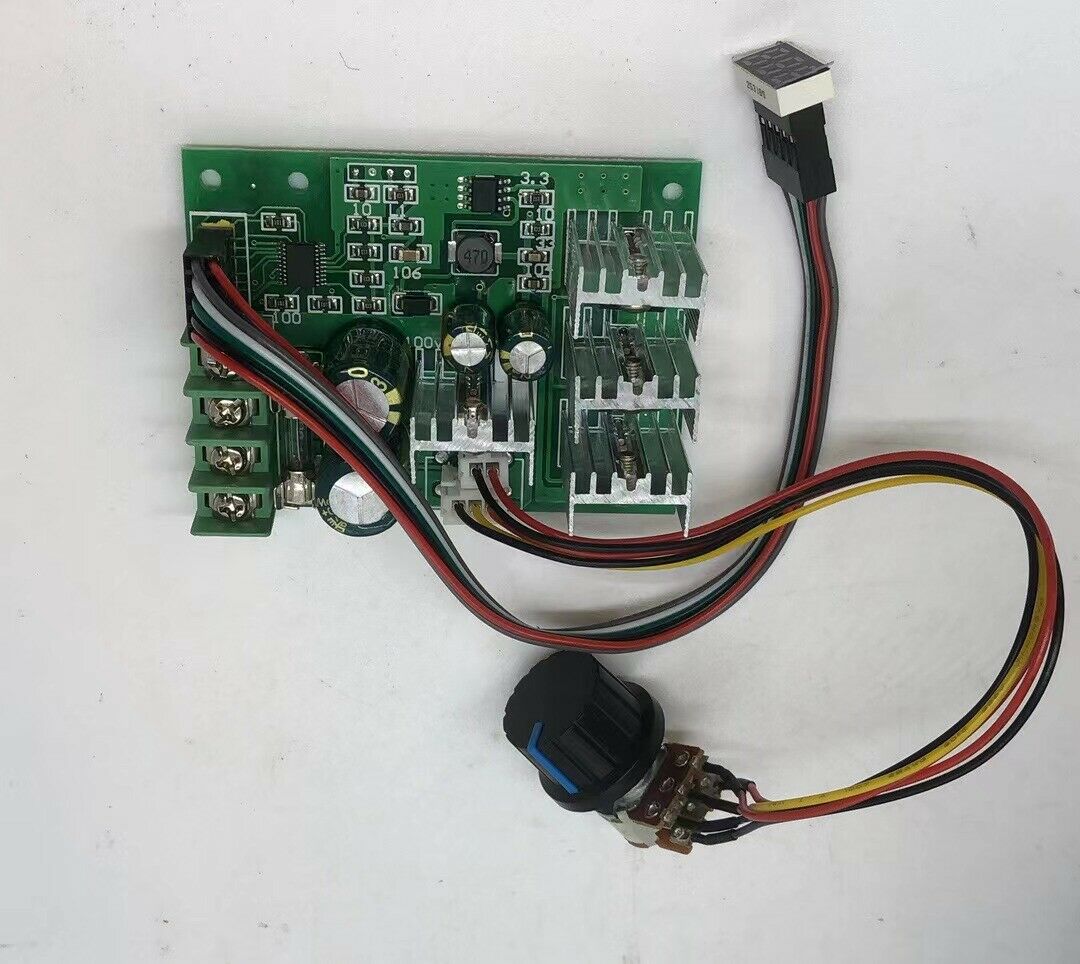

DC Motor Controller 6V-60V 30A Motor Speed ​​Control Variable Speed ​​Motor Controller Control with Digital Display

Description:

The speed controller is made with high quality circuit board which ensures a longer service life.

This simple and easy to use DC motor speed controller has stable performance.

The output current of this motor speed controller can be adjusted from 0A to 30A, and it is easy to set.

Designed with a digital display that shows the rate in percentage from actual speed to maximum speed.

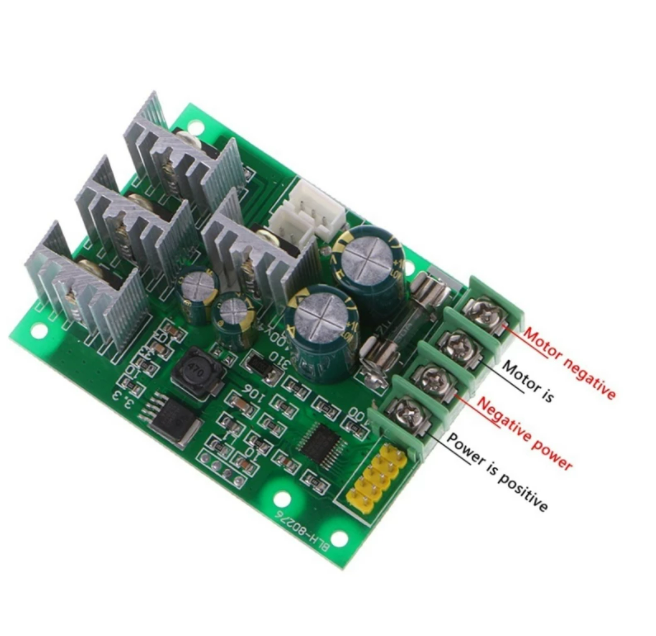

This motor speed controller uses screw terminals for quick and convenient wiring.

The positive and negative pole of the controller must be connected correctly, otherwise the item may be burned.

The input voltage of the controller is better to be the same as the rated voltage of the motor.

Input voltage: DC 6V-60V

Output voltage: linear with load (voltage drop across motor 2 terminals).

Continuous Current: less than 20A

Speed ​​range: 0% to 100% (variable)

Regulation method: potentiometer (linear)

Regulation type: current regulation (cannot be used as a voltage regulator)

Control frequency: 15KHz (pulse width)

Wiring Type: screw terminal

Rotary knob: 100K with switch (270 degrees)

Colour: as shown

Material: Plastic Metal

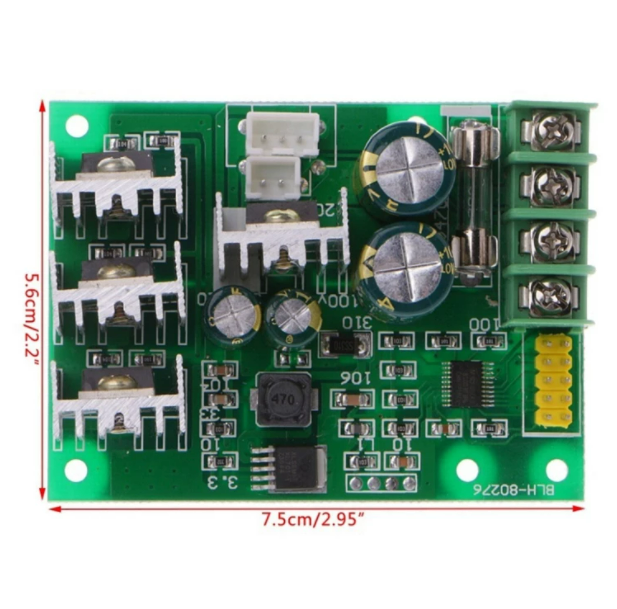

Size: 75 x 5 6mm / X inch

Package content:

1x speed controller

Only the above package content, other items are not included.

Note: Light and different screens may cause the color of the item in the image to be a little different from the real one. The measurement allowed error is /- 1-3cm.
