Input voltage: DC12-60V （2）Output voltage: DC15V-90V can be the key to set voltage is continuously adjustable to accommodate 24V / 36V / 48V / 72V battery pack

Output Current: 0-10A key settings can be continuously adjustable Output Power: 600W maximum output power of best-fit 100W-600W solar panels, the greater the power, MPPT effect is more obvious.

Scope: 20W-600W, applicable 12-60V solar panels to the battery group, lithium battery packs, distributed household photovoltaic power generation systems, solar car wind turbines, solar street lamps.

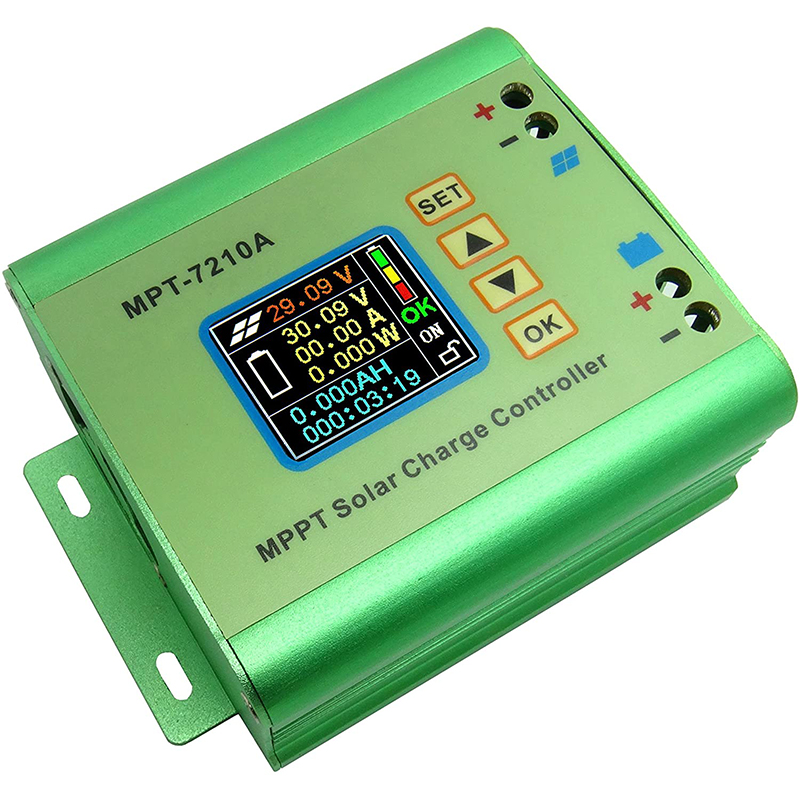

Module properties: Controller MPPT tracking accuracy and industry-leading conversion efficiency, automatic charge only of management, high efficiency step-MPPT solar panel controller, dedicated to batteries and lithium battery charge management.

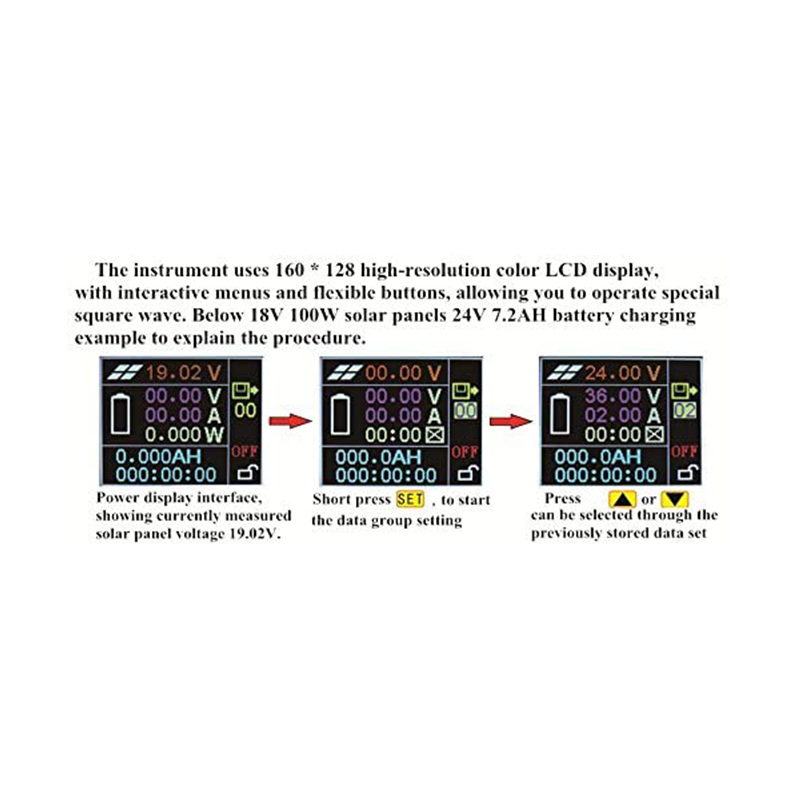

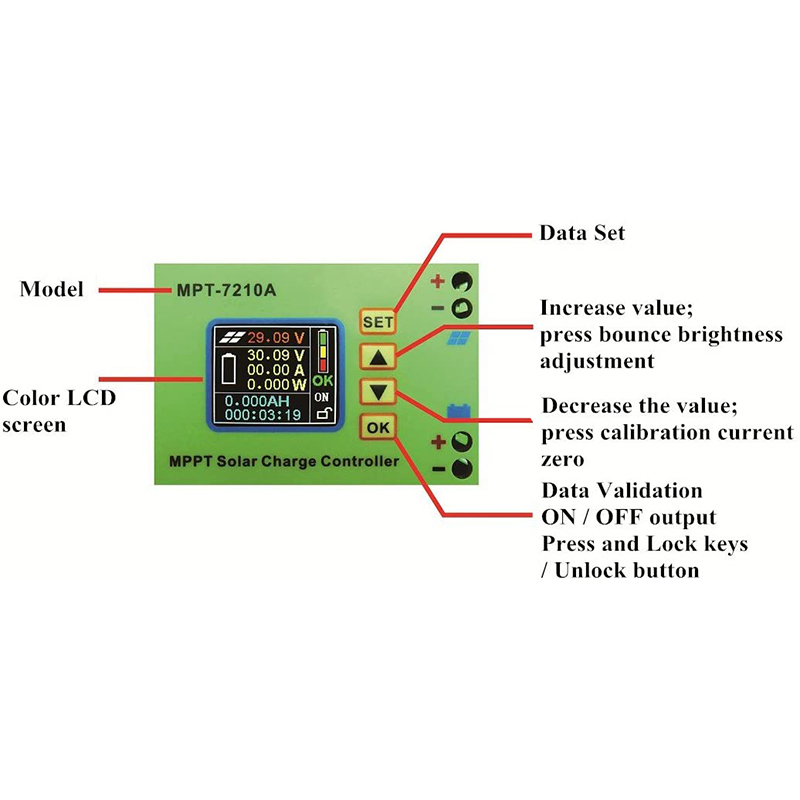

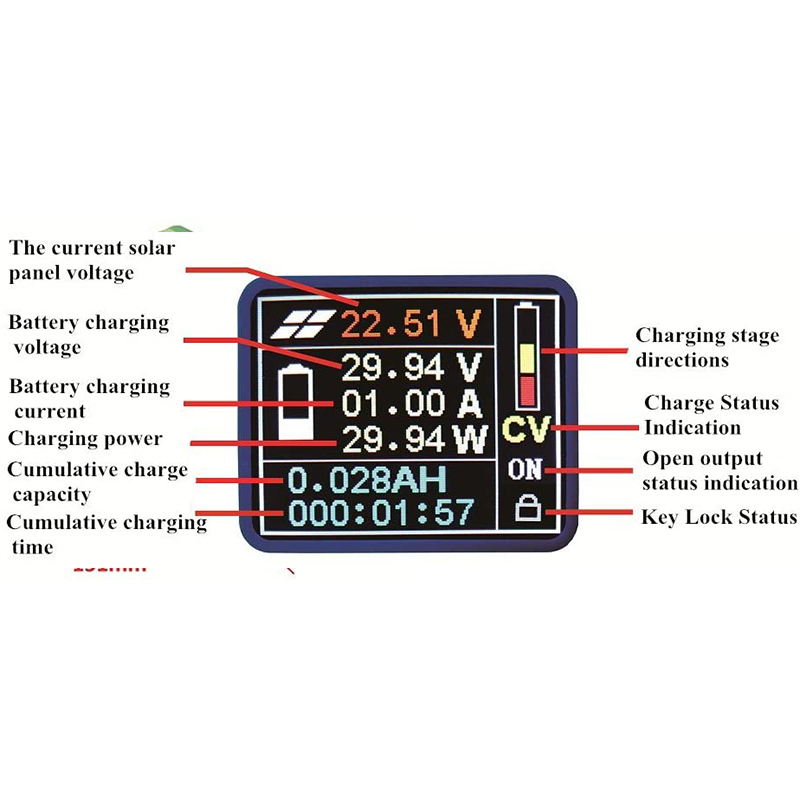

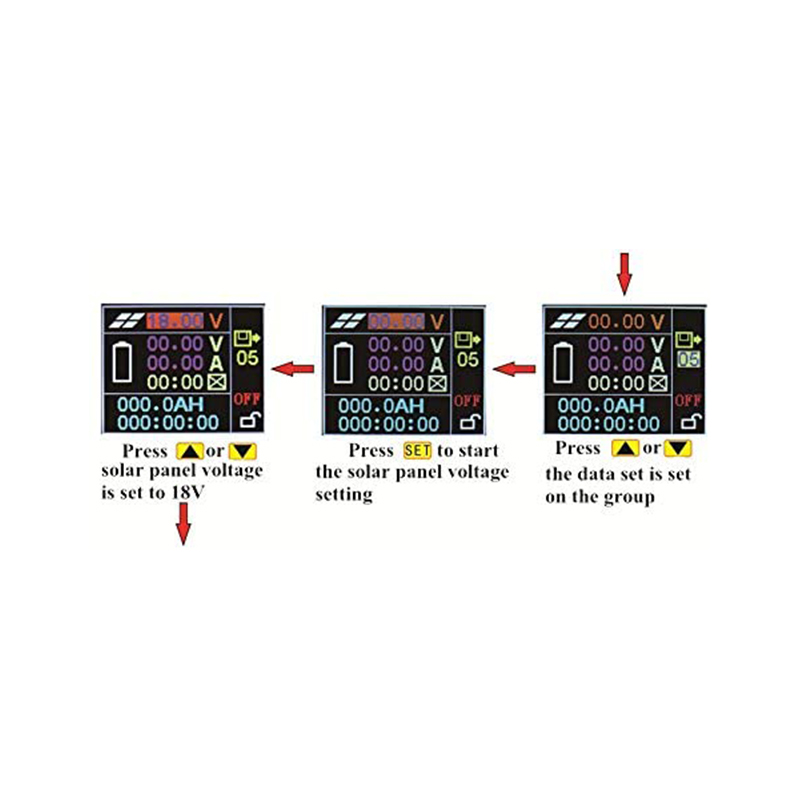

Display interface: Color LCD voltage / current / power / charge status. （7）Mode: MPPT / DC-DC two options. MPPT of photovoltaic panels application, DC-DC step-up power applications. （8）Charging options: charging mode can be freely set, built and set their own 20 sets of data storage, support of a machine.
