DESCRIPTION

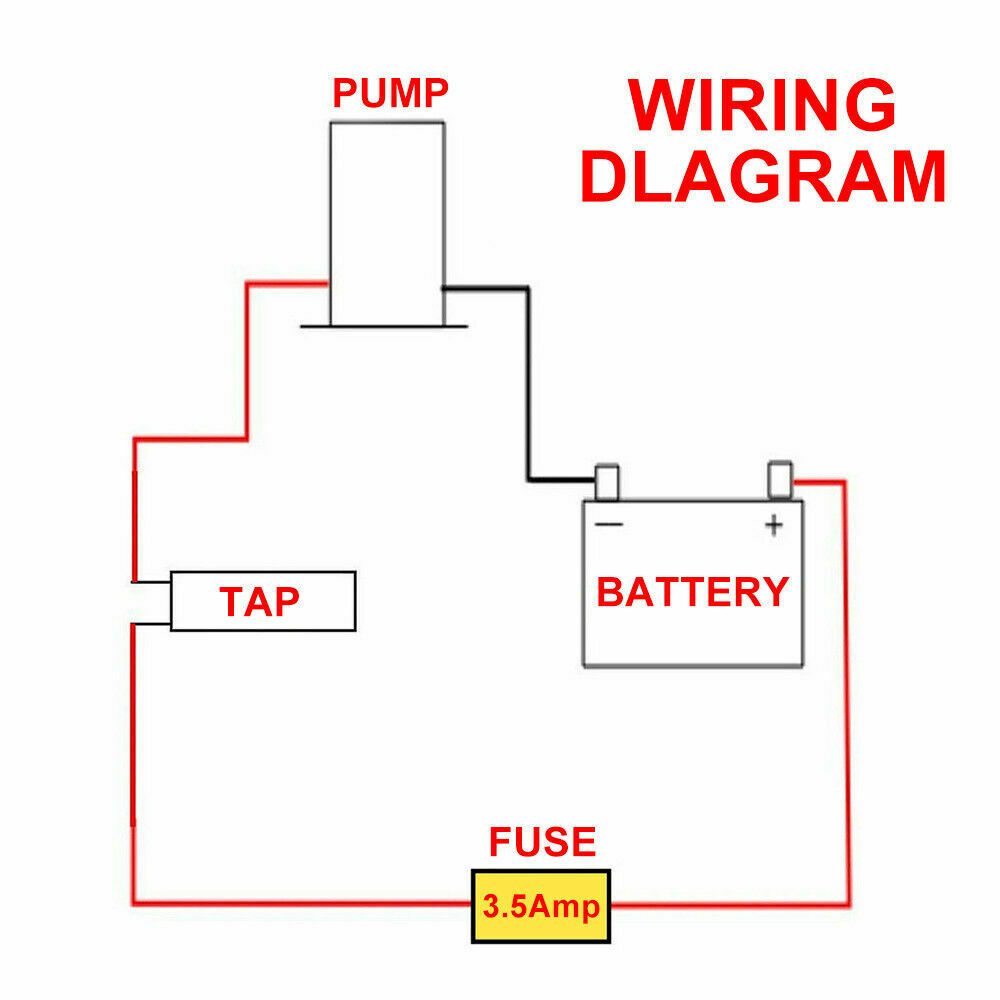

Economical 12 volt galley pump system supplied complete with chrome plated 12 volt electric pump - so pump can be automatically activated by the toggle switch on the faucet. The pump is 'SELF-PRIMING' so it can be mounted virtually anywhere in your Boat/Caravan/RV etc... up to 1.5m above the water supply. Delivers up to 4.3 litres per minute at 5 metre head. Suits 10mm hose.

SPECIAL FUNCTIONS

Durable rubber feet for reduced vibration

Quiet Performance with long life

Runs dry without damage

Self Priming

Built-in Check Valve

Easy Installation

PUMP

2 Chamber Diaphragm

(3/8”) 10mm Hose barb

Liquid: 60°C Max

Self-priming: Vertical within 1.5M

Pressure PSI: 35 PSI

Run Dry: Yes

ELECTRICAL

Leads: 16 AWG Red Black

Protection: Thermal Overload, Automatic Restart

Motor: 12V Permanent Magnet, Intermittent Duty

APPROVALS: CE & Rohs

 TECHNICAL DATA

Volts: 12

Model: YML-2202

Flow (L/Min): 4.3

Pressure (PSI): 35

Amp Draw (A): 3.5

PACKAGE INCLUDES

1 X 12v 4.3lpm self-priming pump
