Supports content with High-bandwidth Digital Content Protection (HDCP)
Turns your phone's USB port into a standard HDMI port
Use the TV'S remote to control and access content on your phone
Upgade vision, the length of both MHL to HDMI cable and USB cable are 6.5 feet
Support 1080P Full HD video resolutions.Video Resolution: 480i, 480P, 720i, 720P, 1080i, 1080P (1920x1080/60Hz)

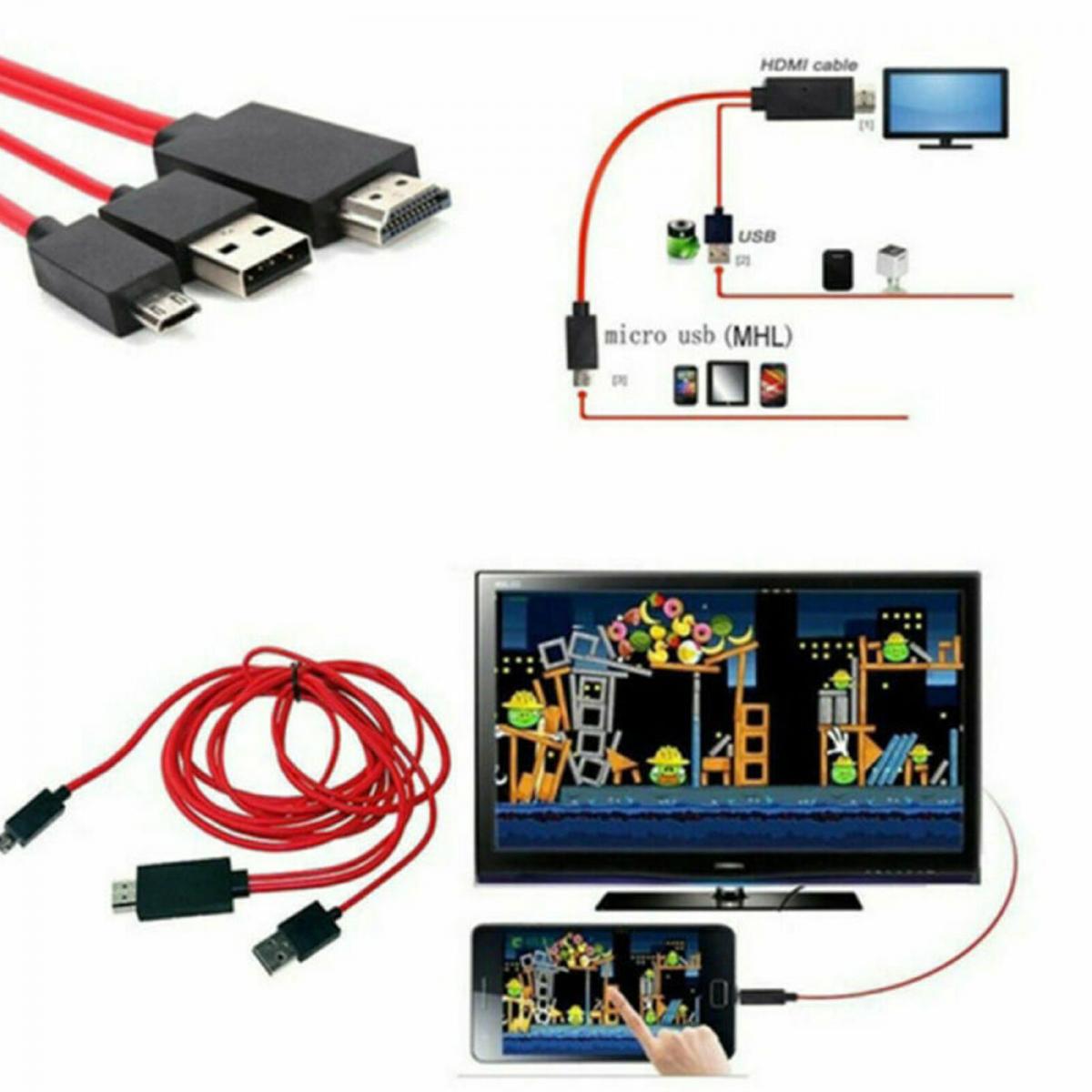

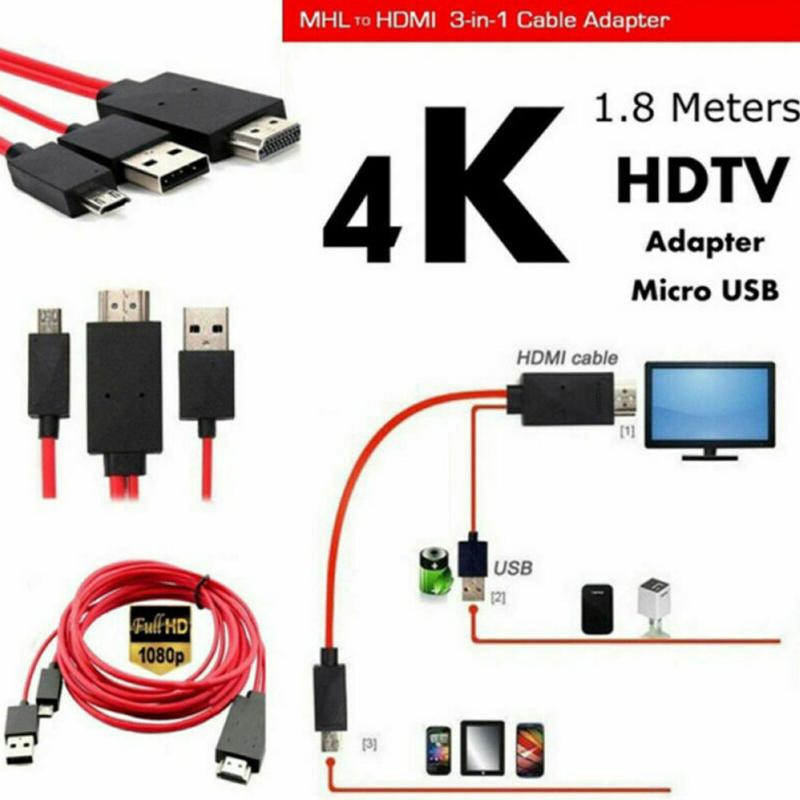

How to use:
Connect the Micro USB(MHL) cable into your cell phone or tablet
Connect TV through the HDMI port,switch the TV to HDMI channel
Connect the USB cable to a power adapter(at least 5V 1A) to supply power for the HDMI connector,you had better use the original adapter
Restart your device after the whole connection finished
Interface: MHL specifications v.1.0
Bandwidth: 25 MHz - 75 Mhz
Connectors: micro USB (in). HDMI (out). USB 2.0 (power)
Video: 1080p HD
Audio: 8-channel (e.g.7.1 surround) digital audio
Power supply: 5V DC.up to 1A from USB 2.0
Cable lengh: 2.0m/6.5ft
MHL universal: as long as the phone supports MHL protocol can be used.
Samsung MHL special type:1.S3 Series i9300 / 9308/939 / 939D;
2. S4 series 9500/9508 (9502 is a custom machine, no MHL function, do not buy);
3. S5 whole series are supported.
4. mega 6.3 (5.8) / I9200 /;
5. note2 series N7100 / N7105 (N7102 and N7108 are custom machine, no MHL function, do not buy);
6. NOTE3 9008Z series except 9008V and other support.
7. Samsung tablet tab3 / note8.0 / N5100 (N5110 does not support), P5200 / 5210, P600, T310 / 311.
MHL ordinary type:
In addition to the above Samsung models, other mobile phones with MHL function, such as millet 2 / 2S, Meizu MX, MX2, Sony L25H, L29I, L35H, L36H, M36H, XL39H, Z1, Z2, Huawei D1, P1, X1, etc. big cola 2S, ZTE U970, Nubia Z5, Z5S, Samsung 9100 and 9220, HTC one X, one XL, one S, G14, G18 and so on, there are many other models
Package includes:1Pc x MHL Micro USB to HDMI 1080P HDTV Cable（176CM long)
