Product Description：
1.12V TO 32V BLADE FUSE BLOCK:The fuse block is designed to work with the voltage from 12v to 32v, It has 12 independent circuit ways and negative terminals for the distribution panel
2.SAFE MATERIAL FUSE BOX:Made of environment friendly PBT material, this fuse holder meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant.
3.LED WARNING INDICATOR:The fuse block has 12 independent LED lights for the circuit on the fuse panel; In case of fuse blown, the corresponding warning indicator will light up immediately, so you can quickly locate where the malfunction is in the circuit
WIDE APPLICATION:Widely used in 12-32V car, autos, buses, tankers, ship, marine, truck, vehicle, SUV, yacht, RV, boats etc.

Specification：
Size: 12-way screw nut terminal
Material: PBT/Plastic/Metal
Model: 12-Way Fuse Box
Input rated voltage: 32V
Input rated current: 100A
Maximum output current: 30A max per circuit
Input wire size: #4-6 AWG
Output wire size: #12-16 AWG
Main line terminal: M5 threaded stud
Single wire terminal: M4 threaded stud
LED Indicator: Red LED indicates when fuse is burnout

Features:
Safety material fuse box
Led warning indicator

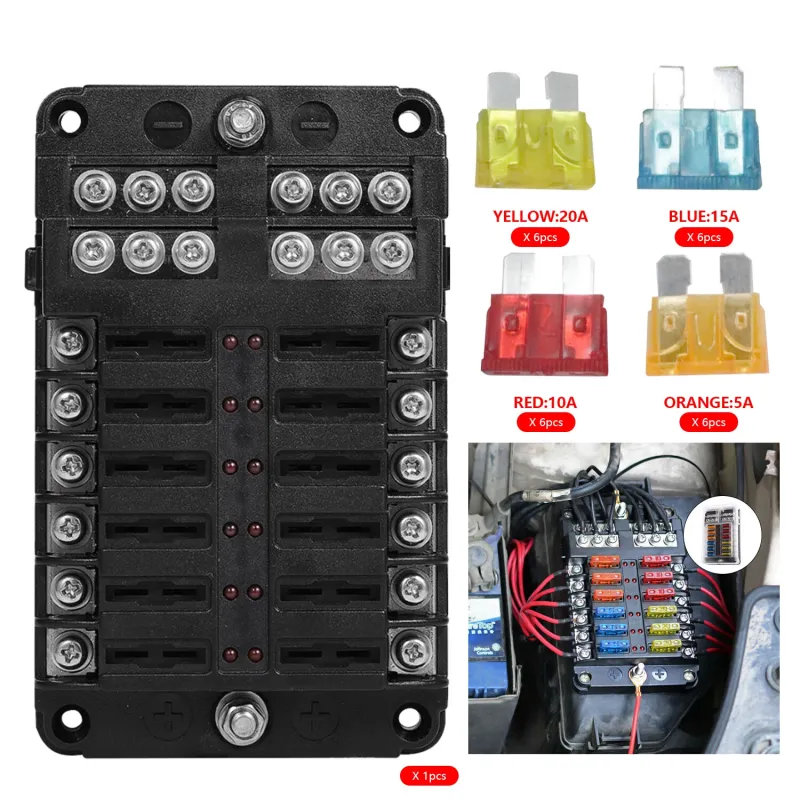

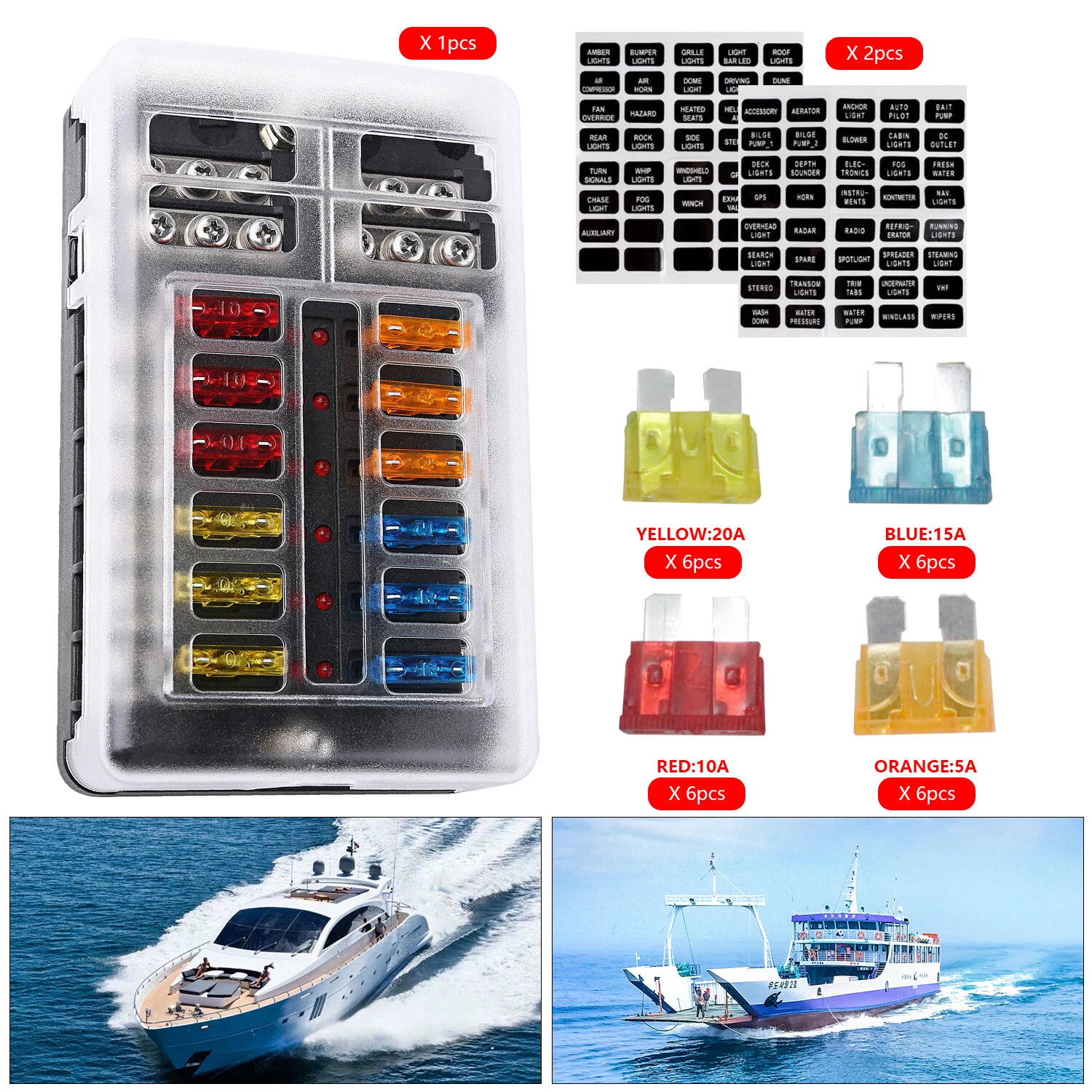

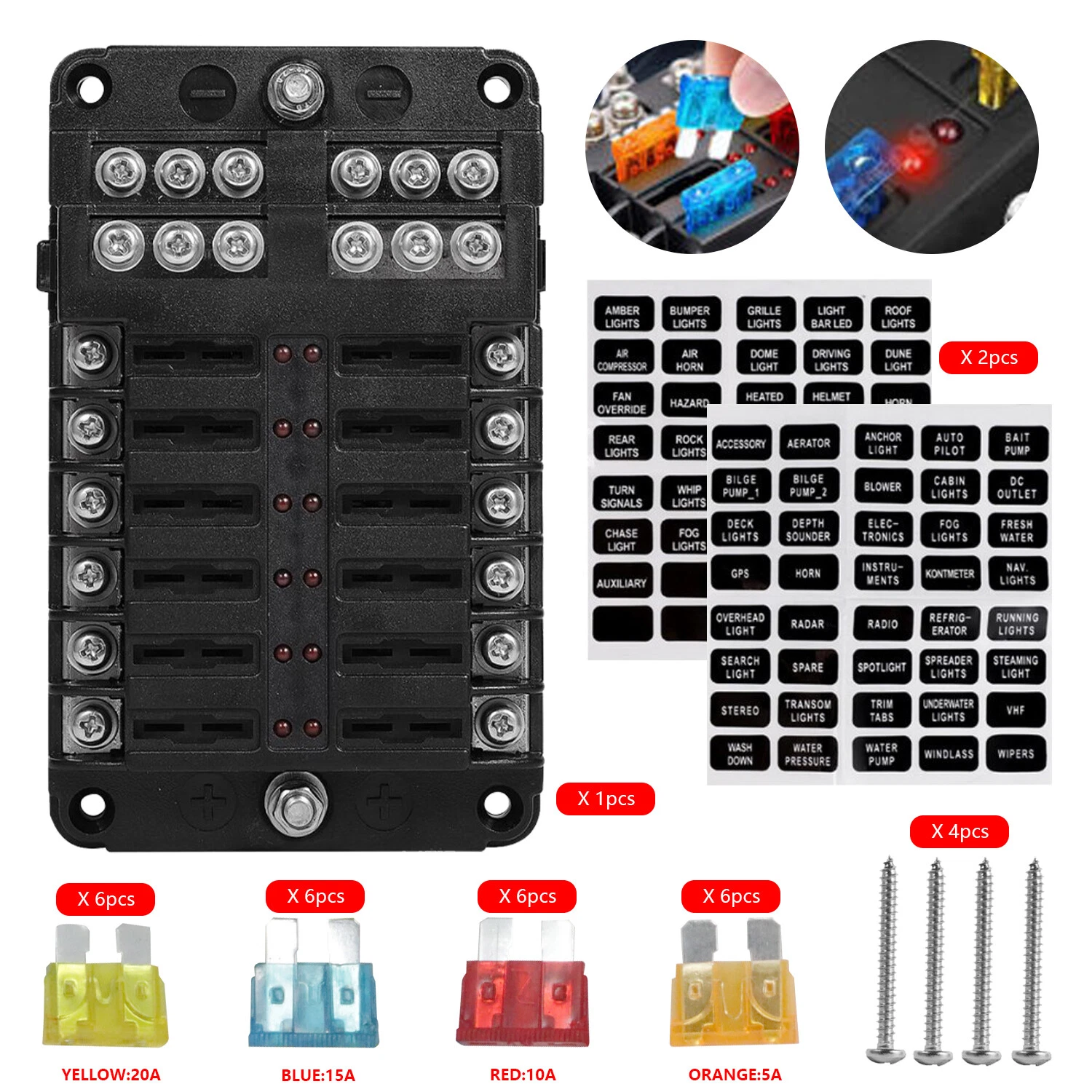

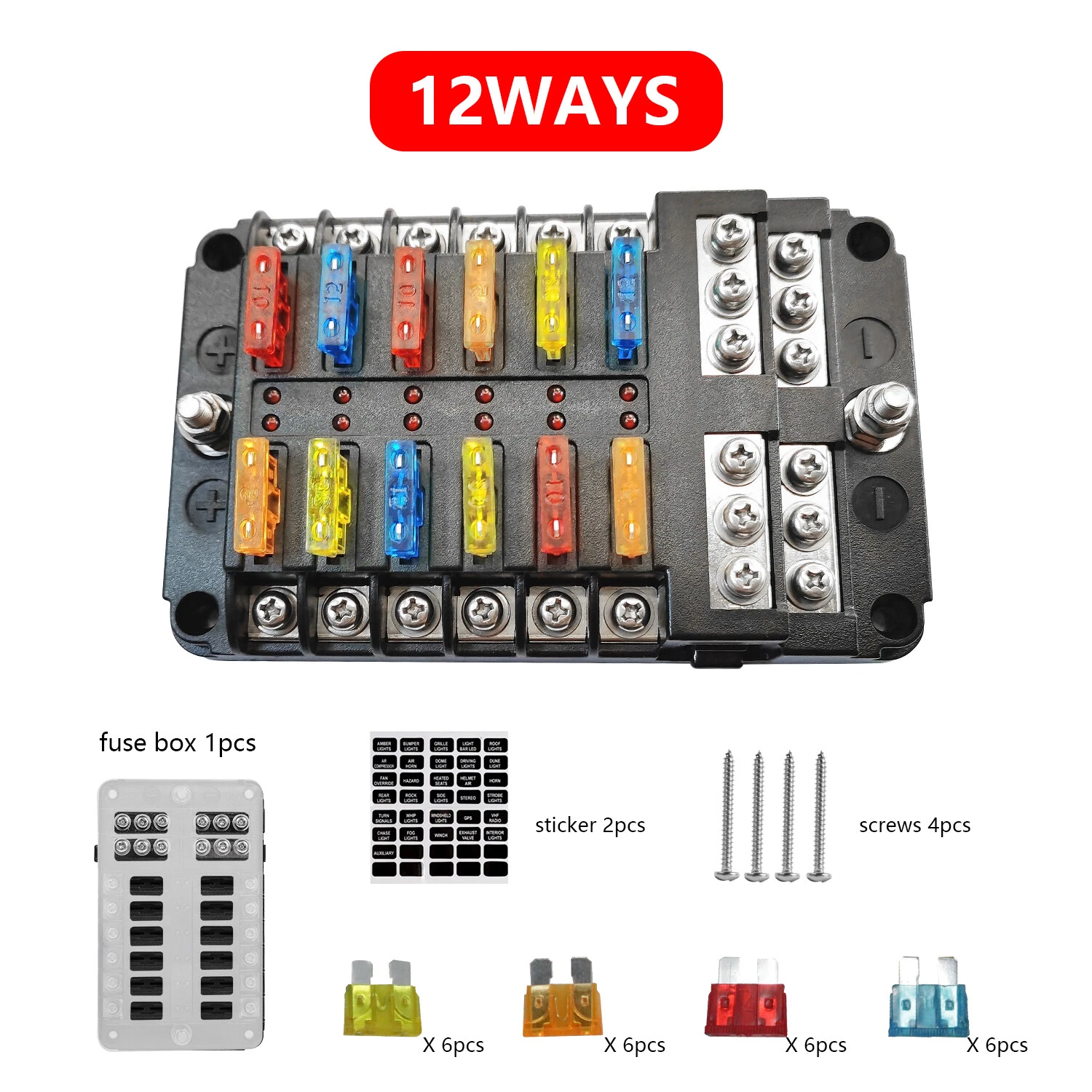

Package Included:
1 x Fuse box with cover
6 x 20A fuse
6 x 15A fuse
6 x 10A fuse
6 x 5A fuse
4 x Screws
2 x Stickers
