Product Specifications

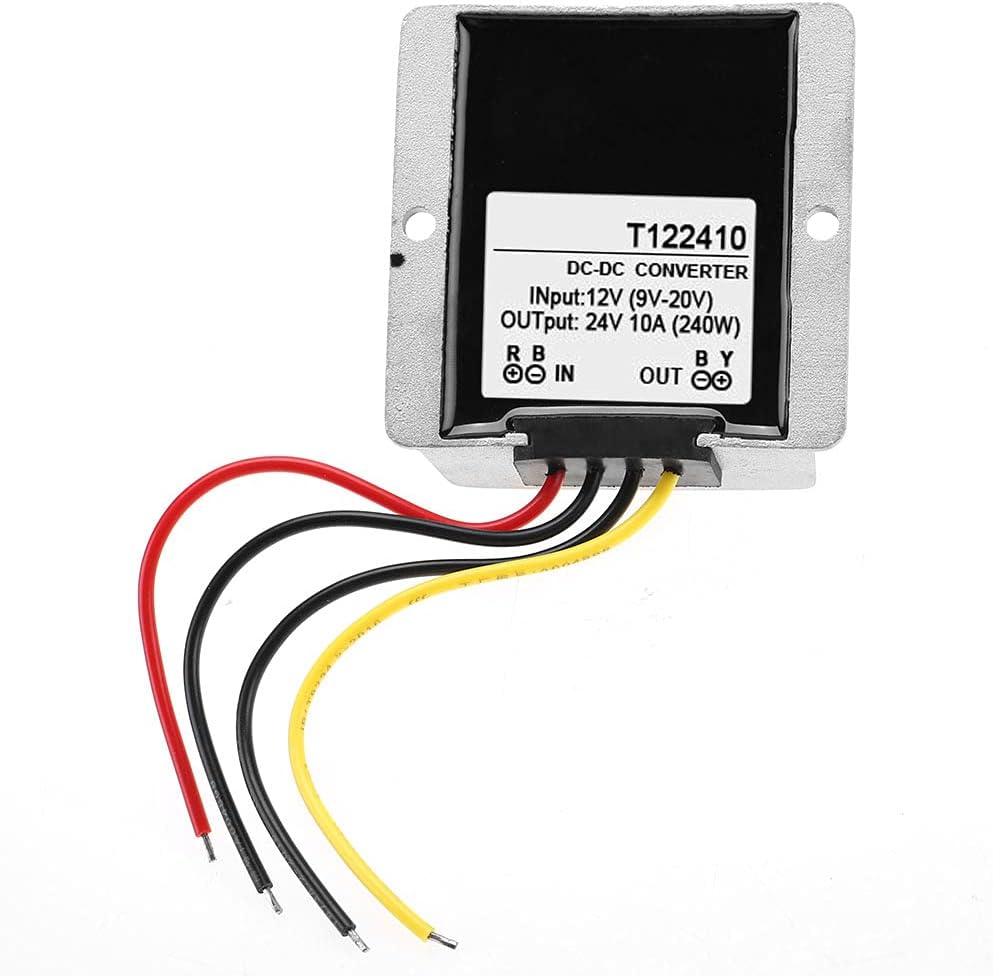

• Model: T122410

• Input Voltage Range: 9-20V DC

• Output Voltage: 24V DC

• Output Power: Max. 240W

• Output Current: Max. 10A

• Inverter Efficiency: Up to 96%

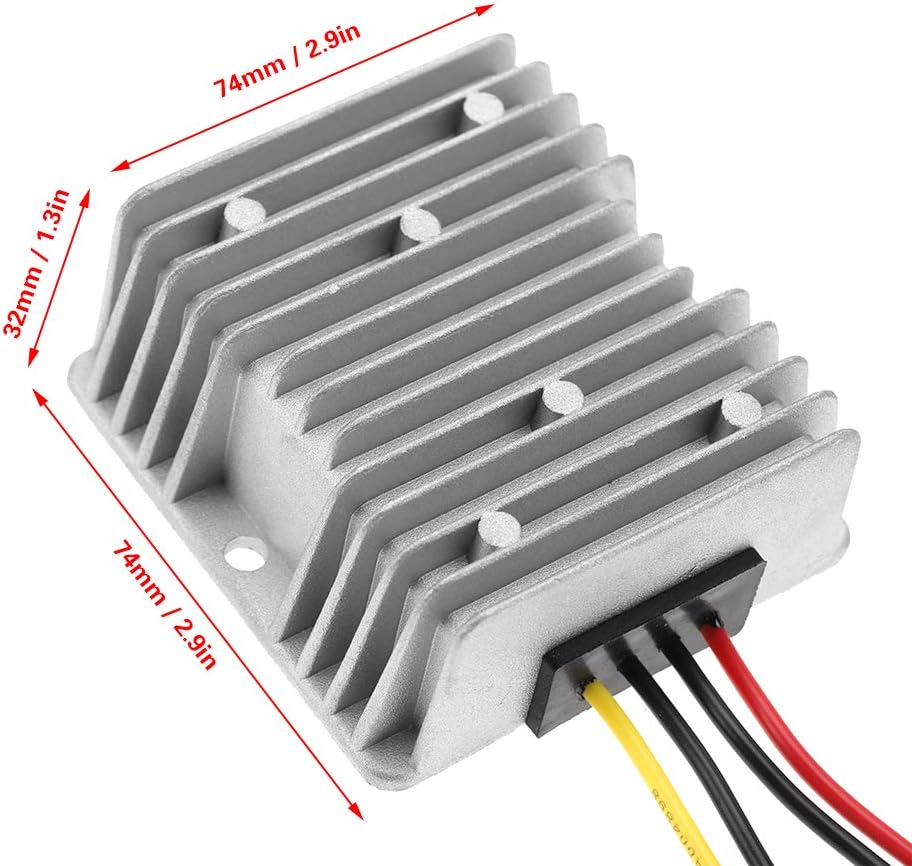

• Dimensions: 74 x 74 x 32 mm (2.9 x 2.9 x 1.3 in)

• Weight: Approx. 240g (8.5 oz)

• Mounting: 65mm hole distance, 5mm aperture

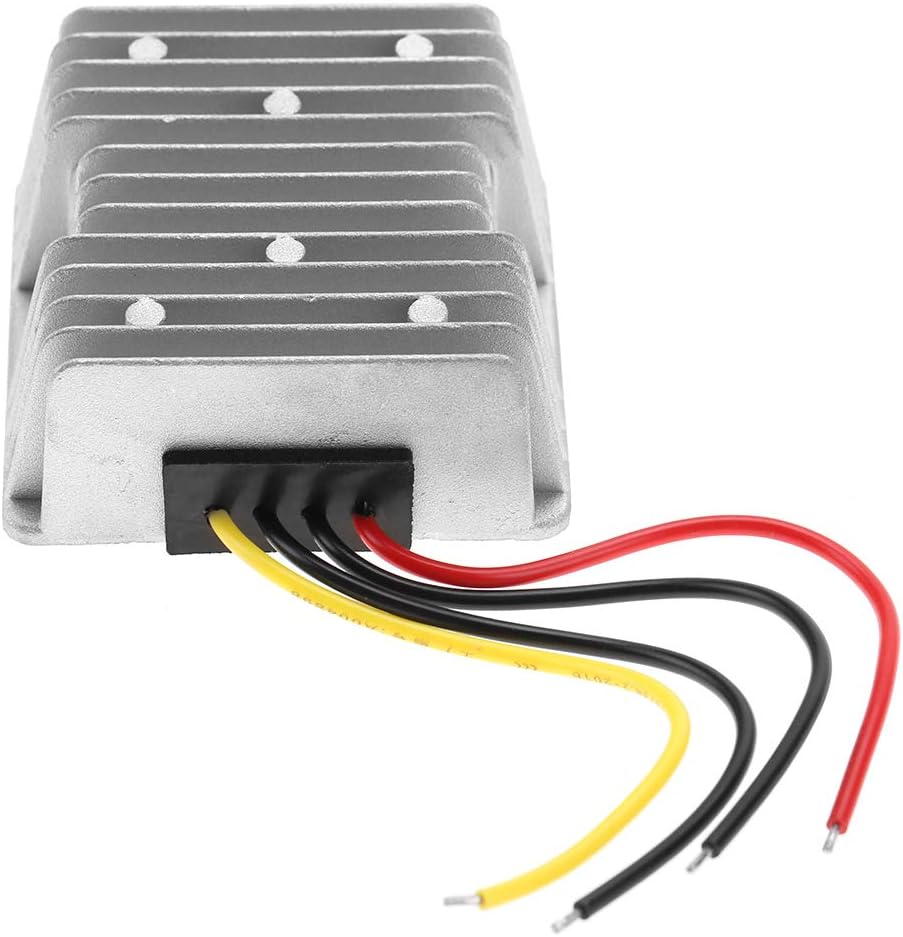

• Wiring: Input: Red ( ), Black (-); Output: Yellow ( ), Black (-)

• Protections: Overcurrent, overvoltage, overheating, short circuit

• Features: Waterproof, dustproof, shock-resistant with organic silicone sealing

Product Description

• High-Efficiency Conversion: Steps up 9-20V DC input to 24V DC output with up to 96% efficiency, delivering reliable 240W power at 10A.

• Durable Design: Made with high-quality components and synchronous voltage stabilization for low heat and consistent performance.

• Robust Protections: Includes automatic safeguards against overcurrent, overvoltage, overheating, and short circuits for safe operation.

• Versatile Applications: Suitable for robots, photovoltaic panels, pumps, CNC equipment, motors, printers, and other devices.

• Rugged Construction: Sealed with organic silicone for waterproof, dustproof, and shock-resistant performance in demanding environments.

• Easy Installation: Compact size (74 x 74 x 32 mm) with 65mm mounting hole distance and clear wiring (red/black input, yellow/black output).
