Description
Hign related chemistry: none
Color: silver
Tork：150N
Usage: BOT, Car, Electric Bicycle, Fan, Home Appliance
Continuous Current(A):0.25A
Construction: Permanent magnet
Type: Micromotor
Protect Feature：Waterproof
Commutation: berus
Efficiency: IE 2
Output Power：3W
Origin: mainland China
Certification: CE

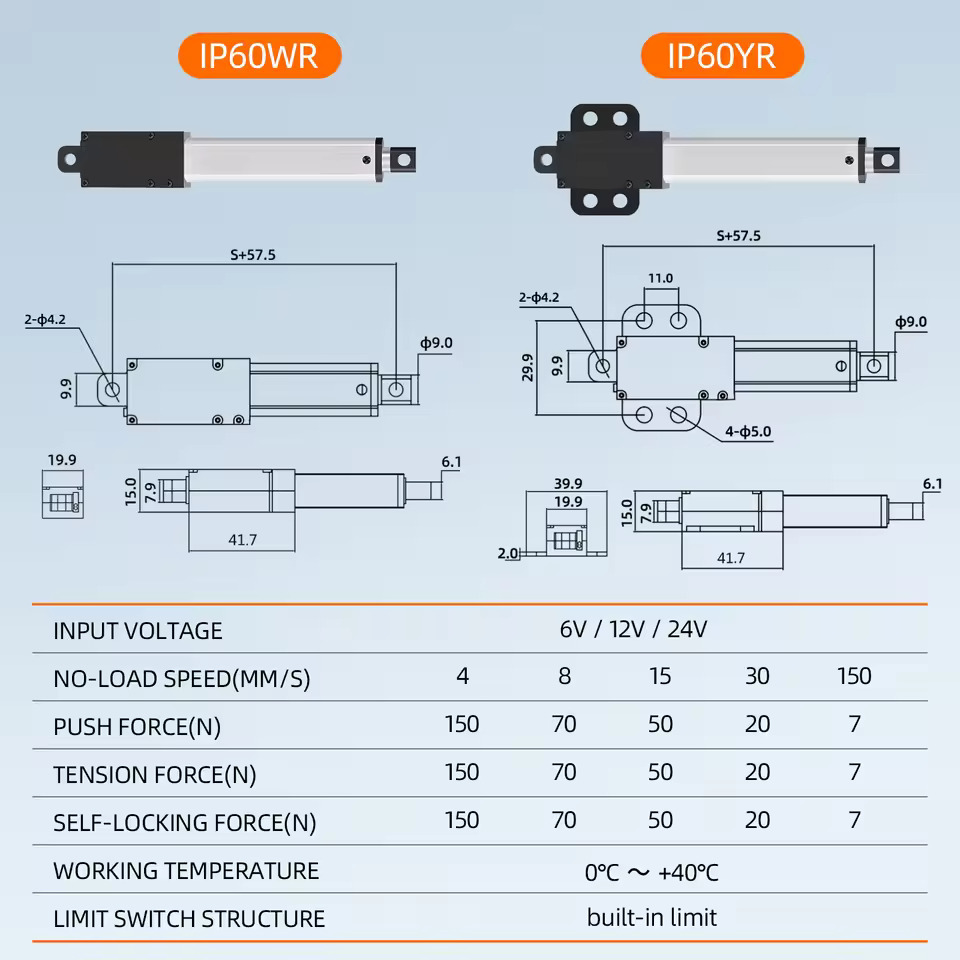

Technical parameters
Voltage (V) DC 24V
No-load speed (mm/s) 4
Load capacity push (N) 150
Load capacity pull (N) 150
Damping statoc (N) 150
Stroke length (mm) 20mm
Operating temperature 0~40℃
IP grade IP43/IP65
Limit switch Built-in
Operating frequency 10% max 2min continuous use
Inner tube Aluminum tube
Color Silver gray
Lead screw type T type

What's inside?

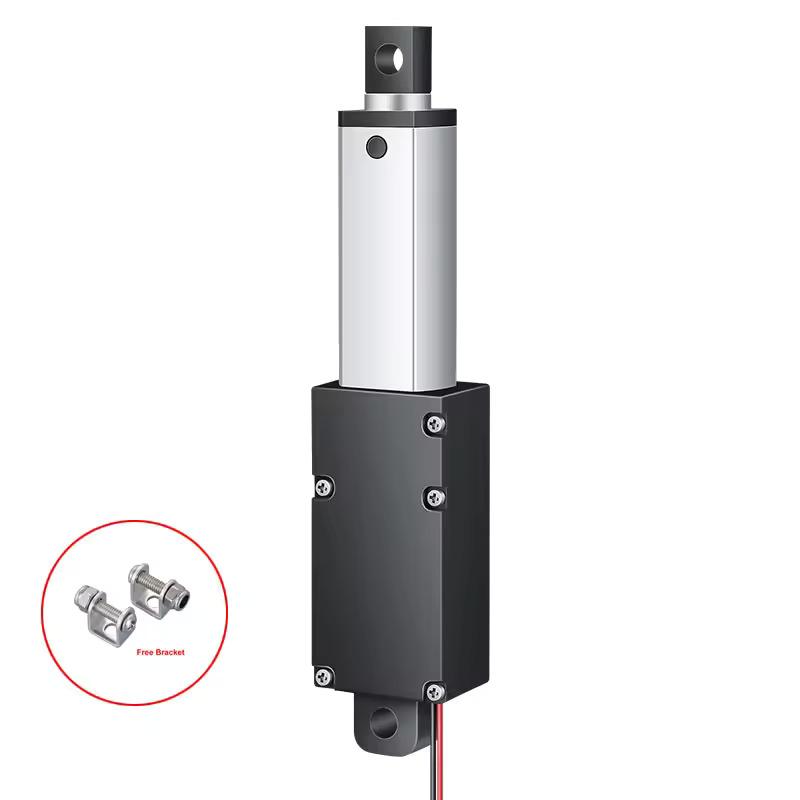

1 x Mini Electric Linear Actuator
2 x Mounting Bracket

20mm stroke 4mm per S 150N 24V Mini Electric Linear Actuator

$20
Includig GST + Shipping fee?
Quantity:
Buy Now
