Description

1. Working voltage: 80 ~ 260VAC

2. Test voltage: 80 ~ 260VAC

3.Rated power: 100A / 22000W

4. Operating frequency: 45-65Hz

5.Measuring accuracy: 1.0 grade

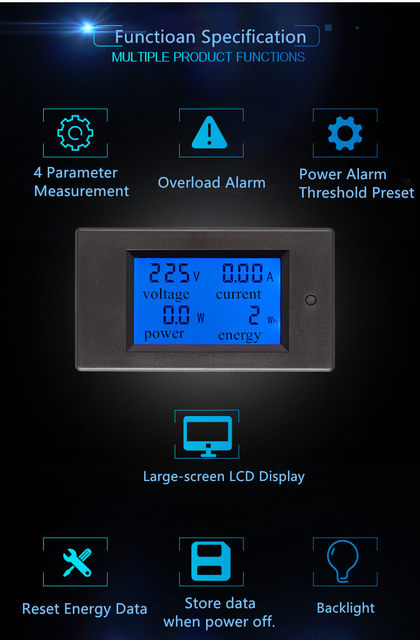

Function

1. Function of measurement of electrical parameters (voltage, current, active power, energy)

2. Overload alarm function (overpower alarm threshold, backlighting and power flashing on alarm).

3. Power alarm threshold preset function (can set the power alarm threshold).

4. The energy key reset function.

5. Store data when power off.

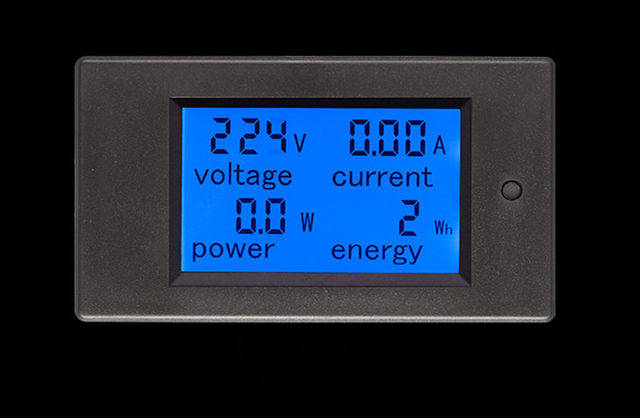

6. Large LCD screen (display voltage, current, active power, energy at the same time)

7. Backlight function.

Display format

1. Power: test range: 0 ~ 22kW

Within 1kw, the display format is 0.0 ~ 999.9W;

Between 1kw ~ 10kw, the display format is 1000 ~ 9999W;

10kw and above, the display format is 0.1 ~ 22kw.

2. Energy: test range: 0 ~ 9999kWh

Within 10kwh, the display format is 0 ~ 9999Wh;

10kwh and above, the display format is 10 ~ 9999kWh.

3. Voltage: test range: 80 ~ 260V

Display format: 80 ~ 260V

4. Current: test range: 0 ~ 100A

Display format: 0.00 ~ 99.99a
