Description

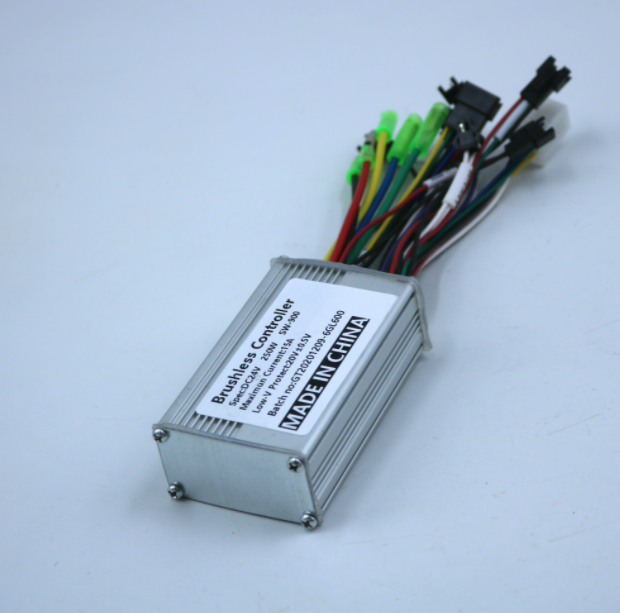

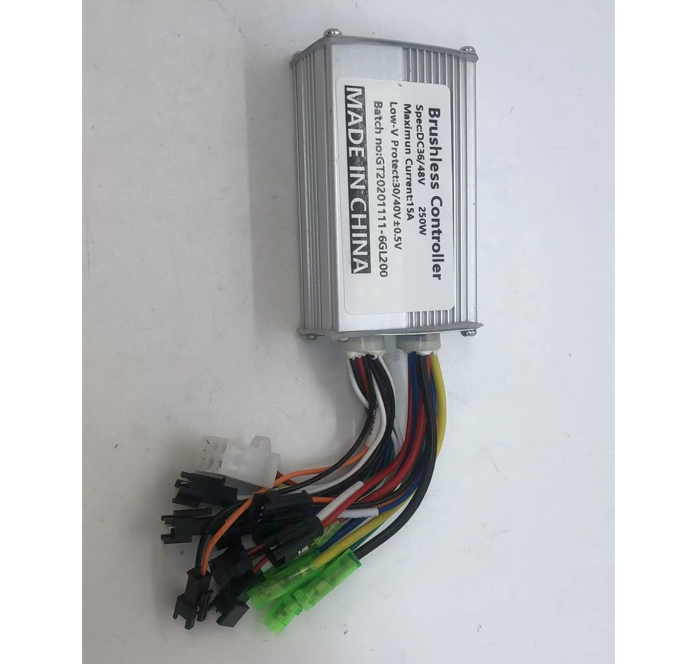

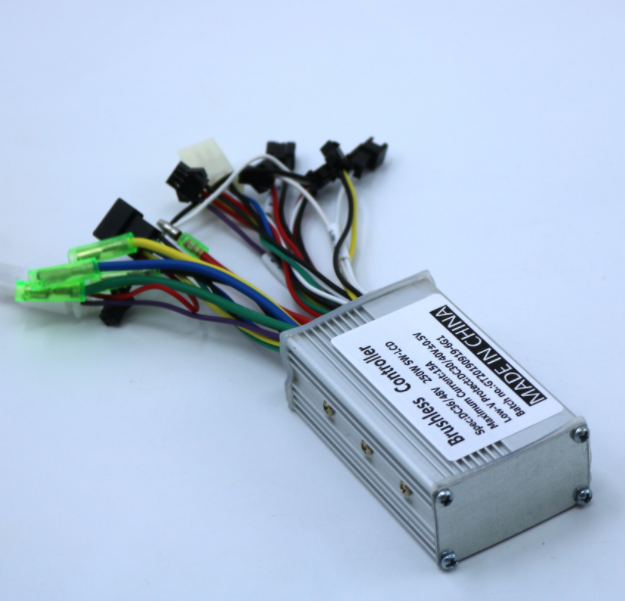

Brushless dc motor controller 36v /48v 250w (this controller only works with sensored brushless dc motor)

Characteristics:

1) Rated voltage: dc36/48v

2) Rated power: 250w

3) Max current: > 15A

4) Undervoltage protection: 30/40v-0.5v

5) Current limited: 15A

6) efficiency: ≥ 83%

7) consumption: 1.5w

8)Waterproof: Rainproof

9)Material: Plastic Metal

10) controller category: brushless direct current

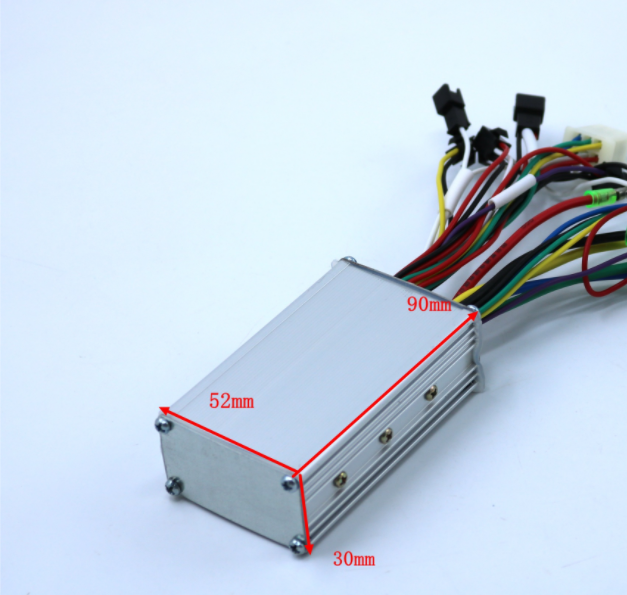

Controller Size: Approx. 9 x 5.2 x 3cm / 3.54 x 2.04 x 1.18inch

Weight: Approx. 332g

11) Applicable model: electric bicycle, electric scooter, electric vehicle, toy scooter etc.

Package List:

1 x Controller

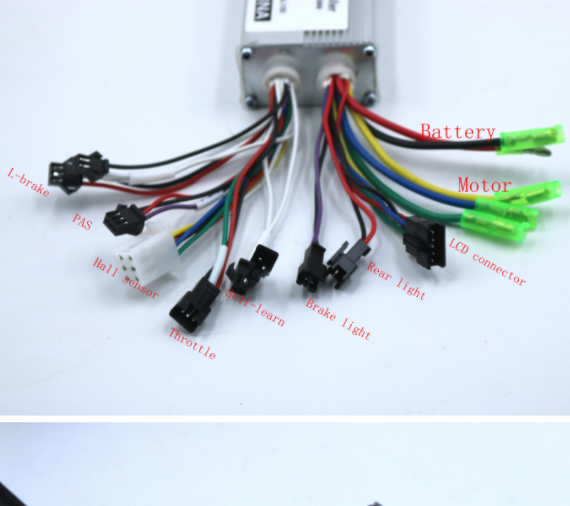

Note:

Each cable is labeled with color for different uses.

Red: power positive electrode

Black: power negative electrode

Yellow: power output

Brown: lamp positive electrode

White: lamp negative electrode

Blue: indicator signal

Green: signal receive

Shipping

Motor controller for electric bike, brushless motor controller 36v/48v and 250w
